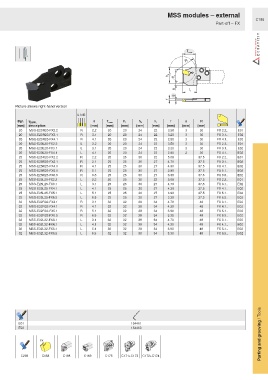

MSS modules – external
C186
Part-off – FX

T max
R

h 2 h 1

a
l 1
f s
Picture shows right-hand version

L N R

Bgr. Type, s T max h 1 h 2 l 1 f a R
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

20 MSS-E20R20-FX2.2 R 2.2 20 20 24 22 3.58 3 30 FX 2.2.. E01

20 MSS-E20R20-FX3.1 R 3.1 20 20 24 22 3.20 3 30 FX 3.1.. E02
20 MSS-E20R20-FX4.1 R 4.1 20 20 24 22 2.80 3 30 FX 4.1.. E02

20 MSS-E20L20-FX2.2 L 2.2 20 20 24 22 3.58 3 30 FX 2.2.. E01

20 MSS-E20L20-FX3.1 L 3.1 20 20 24 22 3.20 3 30 FX 3.1.. E02

20 MSS-E20L20-FX4.1 L 4.1 20 20 24 22 2.80 3 30 FX 4.1.. E02

25 MSS-E25R20-FX2.2 R 2.2 20 25 30 22 5.08 37.5 FX 2.2.. E01
25 MSS-E25R25-FX3.1 R 3.1 25 25 30 27 4.70 37.5 FX 3.1.. E02

25 MSS-E25R25-FX4.1 R 4.1 25 25 30 27 4.30 37.5 FX 4.1.. E02

25 MSS-E25R25-FX5.1 R 5.1 25 25 30 27 3.90 37.5 FX 5.1.. E02

25 MSS-E25R25-FX6.5 R 6.5 25 25 30 27 3.30 37.5 FX 6.5.. E02
25 MSS-E25L20-FX2.2 L 2.2 20 25 30 22 5.08 37.5 FX 2.2.. E01

25 MSS-E25L25-FX3.1 L 3.1 25 25 30 27 4.70 37.5 FX 3.1.. E02

25 MSS-E25L25-FX4.1 L 4.1 25 25 30 27 4.30 37.5 FX 4.1.. E02
25 MSS-E25L25-FX5.1 L 5.1 25 25 30 27 3.90 37.5 FX 5.1.. E02

25 MSS-E25L25-FX6.5 L 6.5 25 25 30 27 3.30 37.5 FX 6.5.. E02

32 MSS-E32R32-FX3.1 R 3.1 32 32 38 34 4.70 48 FX 3.1.. E02
32 MSS-E32R32-FX4.1 R 4.1 32 32 38 34 4.30 48 FX 4.1.. E02

32 MSS-E32R32-FX5.1 R 5.1 32 32 38 34 3.90 48 FX 5.1.. E02

32 MSS-E32R32-FX6.5 R 6.5 32 32 38 34 3.30 48 FX 6.5.. E02

32 MSS-E32L32-FX3.1 L 3.1 32 32 38 34 4.70 48 FX 3.1.. E02

32 MSS-E32L32-FX4.1 L 4.1 32 32 38 34 4.30 48 FX 4.1.. E02

32 MSS-E32L32-FX5.1 L 5.1 32 32 38 34 3.90 48 FX 5.1.. E02
32 MSS-E32L32-FX6.5 L 6.5 32 32 38 34 3.30 48 FX 6.5.. E02

Parting and grooving / Tools

E01 154461
E02 154463

FX

C269 C158 C168 C169 C175 C171+C173 C172+C174
