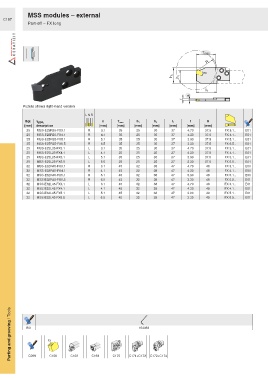

Page 792 - Ceratizit Catalog

MSS modules – external
C187
Part-off – FX long

h 2 h 1

Picture shows right-hand version

L N R

Bgr. Type, s T max h 1 h 2 l 1 f R
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm]

25 MSS-E25R35-FX3.1 R 3.1 35 25 30 37 4.70 37.5 FX 3.1.. E01

25 MSS-E25R35-FX4.1 R 4.1 35 25 30 37 4.30 37.5 FX 4.1.. E01
25 MSS-E25R35-FX5.1 R 5.1 35 25 30 37 3.90 37.5 FX 5.1.. E01

25 MSS-E25R35-FX6.5 R 6.5 35 25 30 37 3.30 37.5 FX 6.5.. E01

25 MSS-E25L35-FX3.1 L 3.1 35 25 30 37 4.70 37.5 FX 3.1.. E01

25 MSS-E25L35-FX4.1 L 4.1 35 25 30 37 4.30 37.5 FX 4.1.. E01

25 MSS-E25L35-FX5.1 L 5.1 35 25 30 37 3.90 37.5 FX 5.1.. E01

25 MSS-E25L35-FX6.5 L 6.5 35 25 30 37 3.30 37.5 FX 6.5.. E01

32 MSS-E32R45-FX3.1 R 3.1 45 32 38 47 4.70 48 FX 3.1.. E01

32 MSS-E32R45-FX4.1 R 4.1 45 32 38 47 4.30 48 FX 4.1.. E01

32 MSS-E32R45-FX5.1 R 5.1 45 32 38 47 3.90 48 FX 5.1.. E01

32 MSS-E32R45-FX6.5 R 6.5 45 32 38 47 3.30 48 FX 6.5.. E01
32 MSS-E32L45-FX3.1 L 3.1 45 32 38 47 4.70 48 FX 3.1.. E01

32 MSS-E32L45-FX4.1 L 4.1 45 32 38 47 4.30 48 FX 4.1.. E01

32 MSS-E32L45-FX5.1 L 5.1 45 32 38 47 3.90 48 FX 5.1.. E01

32 MSS-E32L45-FX6.5 L 6.5 45 32 38 47 3.30 48 FX 6.5.. E01

Parting and grooving / Tools E01 FX C158 C168 C169 C175 C171+C173 C172+C174
