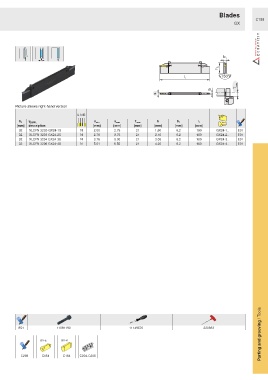

Page 803 - Ceratizit Catalog

Blades
C198
GX

b 1
h 2

150°
l 1
T max
b
s

Picture shows right-hand version

L N R

h 2 Type, s min s max T max b b 1 l 1
[mm] description [mm] [mm] [mm] [mm] [mm] [mm]

32 XLCFN 3202-GX24-1S N 2.00 2.75 21 1.60 6.2 180 GX24-1.. E01

32 XLCFN 3203 GX24-2S N 2.76 3.75 21 2.10 6.2 180 GX24-2.. E01
32 XLCFN 3204 GX24-3S N 3.76 5.00 21 3.05 6.2 180 GX24-3.. E01

32 XLCFN 3206 GX24-4S N 5.01 6.50 21 4.20 6.2 180 GX24-4.. E01

Parting and grooving / Tools

E01 11081190 11149570 220983

GX-E GX-R

C269 C151 C154 C204-C205
