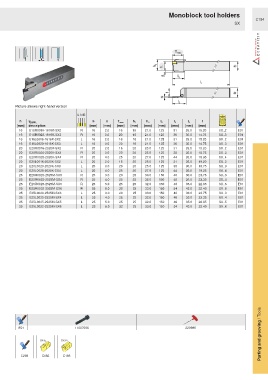

Page 799 - Ceratizit Catalog

Monoblock tool holders
C194
SX

T max

h 2 h 1 h

a
l 3
l 1

f b
s

l 2
Picture shows right-hand version
L N R

h Type, b s T max h 1 h 2 l 1 l 2 l 3 f
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
16 E16R0016-1616K-SX2 R 16 2.0 16 16 21.0 125 31 26.0 15.20 SX..2 E01

16 E16R0020-1616K-SX3 R 16 3.0 20 16 21.0 125 36 30.0 14.75 SX..3 E01

16 E16L0016-1616K-SX2 L 16 2.0 16 16 21.0 125 31 26.0 15.20 SX..2 E01
16 E16L0020-1616K-SX3 L 16 3.0 20 16 21.0 125 36 30.0 14.75 SX..3 E01

20 E20R0016-2020K-SX2 R 20 2.0 16 20 25.0 125 31 26.0 19.20 SX..2 E01

20 E20R0020-2020K-SX3 R 20 3.0 20 20 25.0 125 38 30.0 18.75 SX..3 E01

20 E20R0025-2020K-SX4 R 20 4.0 25 20 27.0 125 44 35.0 18.35 SX..4 E01

20 E20L0016-2020K-SX2 L 20 2.0 16 20 25.0 125 31 26.0 19.20 SX..2 E01

20 E20L0020-2020K-SX3 L 20 3.0 20 20 25.0 125 38 30.0 18.75 SX..3 E01

20 E20L0025-2020K-SX4 L 20 4.0 25 20 27.0 125 44 35.0 18.35 SX..4 E01

25 E25R0020-2525M-SX3 R 25 3.0 20 25 30.0 150 40 30.0 23.75 SX..3 E01

25 E25R0025-2525M-SX4 R 25 4.0 25 25 32.0 150 46 35.0 23.35 SX..4 E01

25 E25R0025-2525M-SX5 R 25 5.0 25 25 32.0 150 46 35.0 22.85 SX..5 E01

25 E25R0032-2525M-SX6 R 25 6.0 32 25 33.0 150 54 43.0 22.40 SX..6 E01

25 E25L0020-2525M-SX3 L 25 3.0 20 25 30.0 150 40 30.0 23.75 SX..3 E01

25 E25L0025-2525M-SX4 L 25 4.0 25 25 32.0 150 46 35.0 23.35 SX..4 E01
25 E25L0025-2525M-SX5 L 25 5.0 25 25 32.0 150 46 35.0 22.85 SX..5 E01

25 E25L0032-2525M-SX6 L 25 6.0 32 25 33.0 150 54 43.0 22.40 SX..6 E01
Parting and grooving / Tools
E01 11007006 220985

SX-E SX-R

C269 C156 C156
