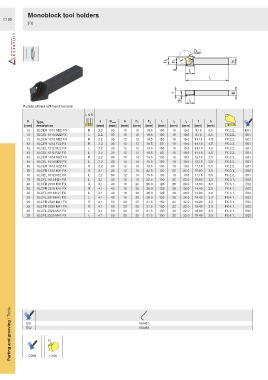

Page 800 - Ceratizit Catalog

Monoblock tool holders
C195
FX

Picture shows left-hand version

L N R

h Type, s D max b h 1 h 2 l 1 l 2 l 3 f a
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

10 XLCER 1010 M22 FX R 2.2 30 10 10 19.5 150 19 19.0 9.18 6.5 FX 2.2.. E01
10 XLCEL 1010 M22 FX L 2.2 30 10 10 19.5 150 19 19.0 9.18 6.5 FX 2.2.. E01

12 XLCER 1212 M22 FX R 2.2 30 12 12 19.5 150 19 19.0 11.18 4.5 FX 2.2.. E01

12 XLCER 1212 F22 FX R 2.2 30 12 12 19.5 80 19 19.0 11.18 4.5 FX 2.2.. E01

12 XLCEL 1212 M22 FX L 2.2 30 12 12 19.5 150 19 19.0 11.18 4.5 FX 2.2.. E01

12 XLCEL 1212 F22 FX L 2.2 30 12 12 19.5 80 19 19.0 11.18 4.5 FX 2.2.. E01

14 XLCER 1414 M22 FX R 2.2 30 14 14 19.5 150 19 19.0 13.18 2.5 FX 2.2.. E01
14 XLCEL 1414 M22 FX L 2.2 30 14 14 19.5 150 19 19.0 13.18 2.5 FX 2.2.. E01

16 XLCER 1612 H22 FX R 2.2 30 12 16 19.5 100 19 19.0 11.18 0.5 FX 2.2.. E01

16 XLCFR 1612 H31 FX R 3.1 35 12 16 22.5 100 22 22.0 10.80 3.5 FX 3.1.. E02

16 XLCEL 1612 H22 FX L 2.2 30 12 16 19.5 100 19 19.0 11.18 0.5 FX 2.2.. E01
16 XLCFL 1612 H31 FX L 3.1 35 12 16 22.5 100 22 22.0 10.80 3.5 FX 3.1.. E02

20 XLCFR 2016 K31 FX R 3.1 40 16 20 26.0 125 26 26.0 14.80 3.0 FX 3.1.. E02

20 XLCFR 2016 K41 FX R 4.1 40 16 20 26.0 125 26 26.0 14.40 3.0 FX 4.1.. E02

20 XLCFL 2016 K31 FX L 3.1 40 16 20 26.0 125 26 26.0 14.80 3.0 FX 3.1.. E02

20 XLCFL 2016 K41 FX L 4.1 40 16 20 26.0 125 26 26.0 14.40 3.0 FX 4.1.. E02

25 XLCFR 2520 M31 FX R 3.1 50 20 25 31.5 150 32 32.0 18.80 3.5 FX 3.1.. E02

25 XLCFR 2520 M41 FX R 4.1 50 20 25 31.5 150 32 32.0 18.40 3.5 FX 4.1.. E02

25 XLCFL 2520 M31 FX L 3.1 50 20 25 31.5 150 32 32.0 18.80 3.5 FX 3.1.. E02

25 XLCFL 2520 M41 FX L 4.1 50 20 25 31.5 150 32 32.0 18.40 3.5 FX 4.1.. E02
Parting and grooving / Tools E01 FX C158 154461
E02
154463
C269
