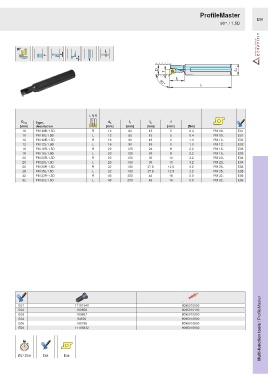

Page 977 - Ceratizit Catalog
P. 977
ProfileMaster
E50
90° / 1.5D
90°
D d A
f
l 2
90°
l 1
L N R
D min Type, d A l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [Nm]
10 PM 10R-1.5D R 12 80 15 5 0.4 PM 10.. E01
10 PM 10L-1.5D L 12 80 15 5 0.4 PM 10.. E01
12 PM 12R-1.5D R 16 90 18 6 1.0 PM 12.. E02
12 PM 12L-1.5D L 16 90 18 6 1.0 PM 12.. E02
16 PM 16R-1.5D R 20 125 24 8 2.2 PM 16.. E03
16 PM 16L-1.5D L 20 125 24 8 2.2 PM 16.. E03
20 PM 20R-1.5D R 25 150 30 10 3.2 PM 20.. E04
20 PM 20L-1.5D L 25 150 30 10 3.2 PM 20.. E04
25 PM 25R-1.5D R 32 180 37.5 12.5 3.2 PM 25.. E05
25 PM 25L-1.5D L 32 180 37.5 12.5 3.2 PM 25.. E05
32 PM 32R-1.5D R 40 200 48 16 5.0 PM 32.. E06
32 PM 32L-1.5D L 40 200 48 16 5.0 PM 32.. E06
Multi-function tools / ProfileMaster
E01 11161940 8095010000
E02 169858 8095010100
E03 169857 8095010200
E04 54976 8095010500
E05 165795 8095010500
E06 11185832 8095010600
