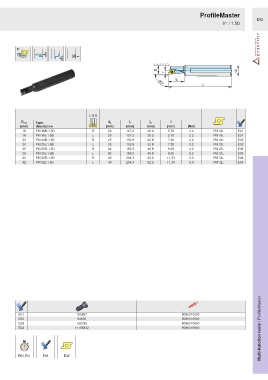

Page 979 - Ceratizit Catalog
P. 979
ProfileMaster
E52
0° / 1.5D
0°
D
f d A
90° l 2
l 1
L N R
D min Type, d A l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [Nm]
16 PM 16R-1.5D R 20 127.3 26.3 5.70 2.2 PM 16.. E01
16 PM 16L-1.5D L 20 127.3 26.3 5.70 2.2 PM 16.. E01
20 PM 20R-1.5D R 25 152.8 32.8 7.20 3.2 PM 20.. E02
20 PM 20L-1.5D L 25 152.8 32.8 7.20 3.2 PM 20.. E02
25 PM 25R-1.5D R 32 183.3 40.8 9.20 3.2 PM 25.. E03
25 PM 25L-1.5D L 32 183.3 40.8 9.20 3.2 PM 25.. E03
32 PM 32R-1.5D R 40 204.3 52.3 11.70 5.0 PM 32.. E04
32 PM 32L-1.5D L 40 204.3 52.3 11.70 5.0 PM 32.. E04
Multi-function tools / ProfileMaster
E01 169857 8095010200
E02 54976 8095010500
E03 165795 8095010500
E04 11185832 8095010600
