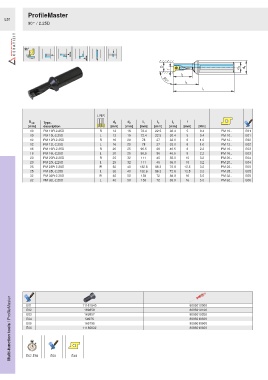

P. 978
ProfileMaster
E51
90° / 2.25D
90°
D d A d 2
f
l 2
90°
l 3
l 1
L N R
D min Type, d A d 2 l 1 l 2 l 3 f
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [Nm]
10 PM 10R-2.25D R 12 16 72.4 22.5 30.4 5 0.4 PM 10.. E01
10 PM 10L-2.25D L 12 16 72.4 22.5 30.4 5 0.4 PM 10.. E01
12 PM 12R-2.25D R 16 20 78 27 33.0 6 1.0 PM 12.. E02
12 PM 12L-2.25D L 16 20 78 27 33.0 6 1.0 PM 12.. E02
16 PM 16R-2.25D R 20 25 96.5 36 46.5 8 2.2 PM 16.. E03
16 PM 16L-2.25D L 20 25 96.5 36 46.5 8 2.2 PM 16.. E03
20 PM 20R-2.25D R 25 32 111 45 55.0 10 3.2 PM 20.. E04
20 PM 20L-2.25D L 25 32 111 45 55.0 10 3.2 PM 20.. E04
25 PM 25R-2.25D R 32 40 132.6 56.3 72.6 12.5 3.2 PM 25.. E05
25 PM 25L-2.25D L 32 40 132.6 56.3 72.6 12.5 3.2 PM 25.. E05
32 PM 32R-2.25D R 40 50 158 72 88.0 16 5.0 PM 32.. E06
32 PM 32L-2.25D L 40 50 158 72 88.0 16 5.0 PM 32.. E06
Multi-function tools / ProfileMaster E01 E68 E49 11161940 8095010000
E02
8095010100
169858
E03
8095010200
169857
8095010500
54976
E04
E05
165795
8095010500
8095010600
E06
11185832
E57-E59
