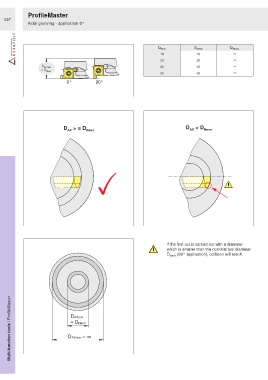

Page 994 - Ceratizit Catalog

ProfileMaster
E67
Axial grooving - application 0°

D Nenn D AXmin D AXmax
16 16 ∞
20 20 ∞
D AX min 25 25 ∞
L
= D Nenn
32 32 ∞
L
0° 90°

D > = D D < D
AX Nenn AX Nenn

If the first cut is carried out with a diameter
which is smaller than the nominal tool diameter
D Nenn (90° application), collision will result.

Multi-function tools / ProfileMaster DAXmax = ∞

DAXmin
= DNenn
