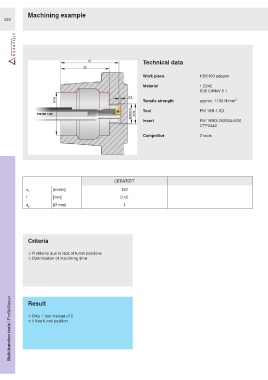

Machining example
   E69










                                                                Technical data


                                                                Work piece                HSK100 adapter
                                                                Material                  1.2342
                                                                                          X38 CrMoV 5 1

                                                                Tensile strength          approx. 1100 N/mm 2
                                                                Tool                      PM 16R-1.5D

                                                                Insert                    PM 16RG 252004-M20
                                                                                          CTP2440

                                                                Competitor                2 tools











                                                    CERATIZIT
             v c        [m/min]                        150
             f          [mm]                           0.15
             a p        [Ø mm]                          1








             Criteria


             ○ Problems due to lack of turret positions
             ○ Optimisation of machining time









      Multi-function tools / ProfileMaster  Result



             ○ Only 1 tool instead of 2
             ○ 1 free turret position
