P. 997

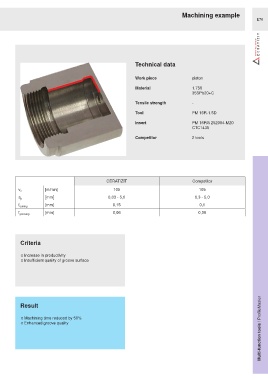

Machining example
                                                                                                                   E70










                                                             Technical data


                                                             Work piece               piston

                                                             Material                 1.756
                                                                                      35SPb20+C

                                                             Tensile strength         -

                                                             Tool                     PM 16R-1.5D

                                                             Insert                   PM 16RG 252004-M20
                                                                                      CTC1435

                                                             Competitor               2 tools










                                                CERATIZIT                             Competitor
         v c         [m/min]                       105                                   105
         a p         [mm]                        0,03 - 5,0                             0,3 - 5,0
         f turning   [mm]                          0,15                                   0,1
         f grooving  [mm]                          0,06                                  0,06







          Criteria

          ○ Increase in productivity
          ○ Insufficient quality of groove surface








                                                                                                                     Multi-function tools / ProfileMaster
          Result


          ○ Machining time reduced by 50%
          ○ Enhanced groove quality
