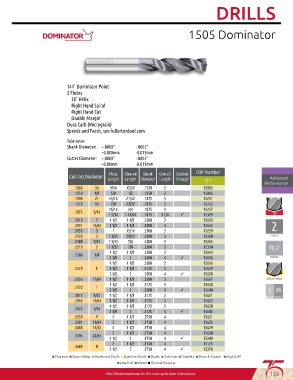

Page 135 - Fullerton Tool Catalog

DRILLS

1505 Dominator

144˚ Dominator Point
2 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Double Margin
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: +.0000” -.0005”
+0.000mm -0.013mm
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm

Coolant
Flute
Cutting Diameter Length Cleared Shank Overall Through EDP Number
Length Diameter Length
FC 7
.1065 36 9/16 15/32 .1250 2 15003
.1250 1/8 5/8 1/2 .1250 2 15006
.1590 21 13/16 21/32 .1875 3 15251
.1770 16 7/8 23/32 .1875 3 15252
15/16 3/4 .1875 3 15257
.1875 3/16
1 5/16 1 41/64 .1875 3 1/4 ü 15329
.2010 7 1 1/2 1 1/8 .2500 3 15615
.2031 13/64 1 1/2 1 1/8 .2500 3 15653
.2055 5 1 13/16 .2500 3 15259
.2130 3 1 3/32 29/32 .2500 3 15260
.2188 7/32 1 3/32 7/8 .2500 3 15263
.2210 2 1 3/32 7/8 .2500 3 15330
1 1/2 1 1/8 .2500 3 15614
.2500 1/4
2 3/8 2 .2500 4 ü 15636
1 1/2 1 1/8 .2500 3 15616
.2570 F 1 1/2 1 1/8 .3125 3 15529
2 3/8 2 .2500 4 ü 15638
.2656 17/64 1 1/2 1 1/8 .2500 3 15617
1 1/2 1 1/8 .3125 3 15618
.2720 I
2 3/8 2 .2500 4 ü 15640 I M
.2812 9/32 1 1/2 1 1/8 .3125 3 15621 IMPERIAL METRIC
.2969 19/64 1 1/2 1 1/8 .3125 3 15623
1 1/2 1 1/8 .3125 3 15620
.3125 5/16
2 3/8 2 .3125 4 ü 15642
.3230 P 2 1 1/2 .3750 4 15651
.3281 21/64 2 1 1/2 .3750 4 15625
.3438 11/32 2 1 1/2 .3750 4 15629
2 1 1/2 .3750 4 15630
.3594 23/64
2 1/2 2 .3750 4 ü 15349
2 1 1/2 .3750 4 15175
.3680 U
2 1/2 2 .3750 4 ü 15378
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Wood ■ General Purpose
