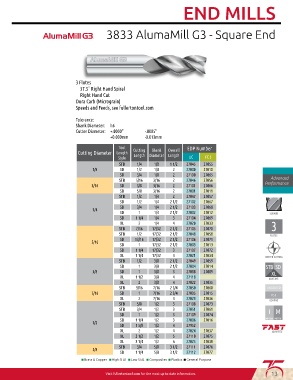

Page 15 - Fullerton Tool Catalog

3 Flutes
37.5˚ Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.0005”
+0.000mm -0.013mm

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC FC 5
STB 1/4 1/8 1 1/2 27045 27055
1/8 SD 1/2 1/8 2 27000 27010
SD 3/4 1/8 2 27100 27065
STB 5/16 3/16 2 27046 27056
3/16 SD 3/8 3/16 2 27101 27066
SD 5/8 3/16 2 27001 27011
STB 1/2 1/4 2 27047 27057
SD 1/2 1/4 2 1/2 27102 27067
SD 3/4 1/4 2 1/2 27103 27068
1/4
SD 1 1/4 2 1/2 27002 27012
SD 1 1/4 1/4 3 27104 27069
XL 2 1/4 4 27020 27033
STB 7/16 17/32 2 1/2 27105 27070
STB 1/2 17/32 2 1/2 27048 27058
SD 13/16 17/32 2 1/2 27106 27071
5/16
SD 1 17/32 2 1/2 27003 27013
SD 1 1/4 17/32 3 27107 27072
XL 1 1/4 17/32 4 27021 27034
STB 1/2 3/8 2 1/2 27049 27059
SD 1 3/8 2 1/2 27004 27014
3/8 SD 1 3/8 3 27088 27089
XL 1 1/2 3/8 4 27118
XL 2 3/8 4 27022 27035
STB 9/16 7/16 2 3/4 27050 27060
7/16 SD 1 7/16 2 3/4 27005 27015
XL 2 7/16 4 27023 27036
STB 5/8 1/2 3 27108 27073
STB 3/4 1/2 3 27051 27061
SD 1 1/2 3 27109 27074
SD 1 1/4 1/2 3 27006 27016
1/2
SD 1 5/8 1/2 4 27952
XL 2 1/2 4 27024 27037
XL 2 1/2 1/2 5 27110 27075
XL 3 1/4 1/2 6 27025 27038
STB 3/4 5/8 3 1/2 27111 27076
5/8
SD 1 1/4 5/8 3 1/2 27112 27077

13
