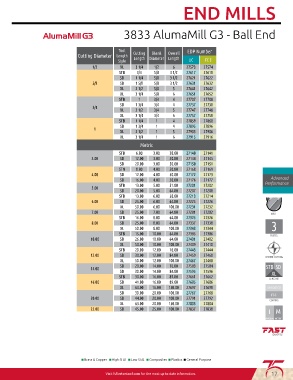

Page 19 - Fullerton Tool Catalog

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC FC 5
1/2 XL 3 1/4 1/2 6 27573 27574
STB 3/4 5/8 3 1/2 27617 27618
SD 1 1/4 5/8 3 1/2 27621 27622
5/8 SD 1 5/8 5/8 3 1/2 27631 27632
XL 2 1/2 5/8 5 27641 27642
XL 3 1/4 5/8 6 27651 27652
STB 1 3/4 4 27707 27708
SD 1 3/4 3/4 4 27737 27738
3/4
XL 2 1/2 3/4 5 27747 27748
XL 3 1/4 3/4 6 27757 27758
STB 1 1/4 1 4 27859 27860
SD 1 3/4 1 4 27895 27896
1
XL 2 1/2 1 5 27905 27906
XL 3 1/4 1 6 27915 27916
Metric
STB 6.00 3.00 38.00 27140 27141
3.00 SD 12.00 3.00 50.00 27144 27145
SD 20.00 3.00 50.00 27150 27151
STN 8.00 4.00 50.00 27168 27169
4.00 SD 12.00 4.00 50.00 27172 27173
SD 16.00 4.00 50.00 27176 27177
STB 13.00 5.00 51.00 27201 27202
5.00
SD 20.00 5.00 64.00 27207 27208
STB 13.00 6.00 58.00 27213 27214
6.00 SD 25.00 6.00 64.00 27225 27226
XL 50.00 6.00 100.00 27231 27232
7.00 SD 25.00 7.00 64.00 27281 27282
STB 16.00 8.00 64.00 27325 27326
8.00 SD 25.00 8.00 64.00 27337 27338
XL 50.00 8.00 100.00 27343 27344
STB 15.00 10.00 64.00 27385 27386
10.00 SD 26.00 10.00 64.00 27401 27402
XL 50.00 10.00 100.00 27409 27410
STB 20.00 12.00 76.00 27443 27444
12.00 SD 30.00 12.00 84.00 27459 27460
XL 50.00 12.00 100.00 27467 27468
SD 20.00 14.00 76.00 27583 27584
14.00
SD 30.00 14.00 84.00 27595 27596
STB 30.00 16.00 89.00 27661 27662
16.00 SD 41.00 16.00 89.00 27685 27686
XL 63.00 16.00 150.00 27697 27698
SD 30.00 20.00 100.00 27767 27768
20.00 SD 44.00 20.00 100.00 27791 27792
XL 63.00 20.00 150.00 27803 27804
25.00 SD 45.00 25.00 100.00 27837 27838

17
