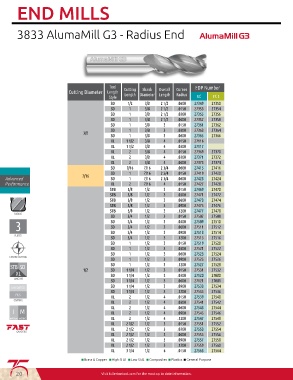

Page 22 - Fullerton Tool Catalog

END MILLS

3833 AlumaMill G3 - Radius End

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner
Radius
Length Diameter Length
Style UC FC 5
SD 1/2 3/8 2 1/2 .0600 27349 27350
SD 1 3/8 2 1/2 .0150 27353 27354
SD 1 3/8 2 1/2 .0300 27355 27356
SD 1 3/8 2 1/2 .0600 27357 27358
SD 1 3/8 3 .0150 27361 27362
SD 1 3/8 3 .0300 27363 27364
3/8
SD 1 3/8 3 .0600 27365 27366
XL 1 1/2 3/8 4 .0150 27116
XL 1 1/2 3/8 4 .0300 27117
XL 2 3/8 4 .0150 27369 27370
XL 2 3/8 4 .0300 27371 27372
XL 2 3/8 4 .0600 27373 27374
SD 9/16 7/16 2 3/4 .0600 27415 27416
SD 1 7/16 2 3/4 .0150 27419 27420
7/16
Advanced SD 1 7/16 2 3/4 .0600 27423 27424
Performance XL 2 7/16 4 .0150 27427 27428
STB 5/8 1/2 3 .0150 27469 27470
STB 5/8 1/2 3 .0300 27471 27472
STB 5/8 1/2 3 .0600 27473 27474
STB 5/8 1/2 3 .0900 27475 27476
STB 5/8 1/2 3 .1200 27477 27478
SD 3/4 1/2 3 .0150 27507 27508
SD 3/4 1/2 3 .0300 27509 27510
SD 3/4 1/2 3 .0600 27511 27512
SD 3/4 1/2 3 .0900 27513 27514
SD 3/4 1/2 3 .1200 27515 27516
SD 1 1/2 3 .0150 27519 27520
SD 1 1/2 3 .0300 27521 27522
SD 1 1/2 3 .0600 27523 27524
SD 1 1/2 3 .0900 27525 27526
SD 1 1/2 3 .1200 27527 27528
1/2 SD 1 1/4 1/2 3 .0150 27531 27532
SD 1 1/4 1/2 3 .0300 27120 27080
SD 1 1/4 1/2 3 .0600 27121 27081
UNCOATED SD 1 1/4 1/2 3 .0900 27533 27534
SD 1 1/4 1/2 3 .1200 27535 27536
FC-5
XL 2 1/2 4 .0150 27539 27540
XL 2 1/2 4 .0300 27541 27542
XL 2 1/2 4 .0600 27543 27544
I M XL 2 1/2 4 .0900 27545 27546
IMPERIAL METRIC XL 2 1/2 4 .1200 27547 27548
XL 2 1/2 1/2 5 .0150 27551 27552
XL 2 1/2 1/2 5 .0300 27553 27554
XL 2 1/2 1/2 5 .0600 27555 27556
XL 2 1/2 1/2 5 .0900 27557 27558
XL 2 1/2 1/2 5 .1200 27559 27560
XL 3 1/4 1/2 6 .0150 27563 27564
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose
