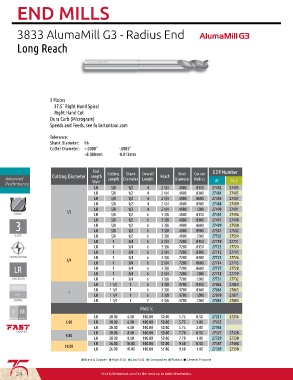

Page 26 - Fullerton Tool Catalog

END MILLS

3833 AlumaMill G3 - Radius End

3 Flutes
37.5˚ Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.0005”
+0.000mm -0.013mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Reach Neck Corner
Advanced Length Diameter Length Diameter Radius UC FC 5
Performance Style
LR 5/8 1/2 4 2 1/4 .4800 .0150 27482 27483
LR 5/8 1/2 4 2 1/4 .4800 .0300 27484 27485
LR 5/8 1/2 4 2 1/4 .4800 .0600 27486 27487
LR 5/8 1/2 4 2 1/4 .4800 .0900 27488 27489
LR 5/8 1/2 4 2 1/4 .4800 .1200 27490 27491
1/2
LR 5/8 1/2 6 3 3/8 .4800 .0150 27495 27496
LR 5/8 1/2 6 3 3/8 .4800 .0300 27497 27498
LR 5/8 1/2 6 3 3/8 .4800 .0600 27499 27500
LR 5/8 1/2 6 3 3/8 .4800 .0900 27501 27502
LR 5/8 1/2 6 3 3/8 .4800 .1200 27503 27504
LR 1 3/4 6 2 1/4 .7200 .0150 27710 27711
LR 1 3/4 6 3 3/8 .7200 .0150 27723 27724
LR 1 3/4 6 2 1/4 .7200 .0300 27712 27713
LR 1 3/4 6 3 3/8 .7200 .0300 27725 27726
3/4
LR 1 3/4 6 2 1/4 .7200 .0600 27714 27715
LR 1 3/4 6 3 3/8 .7200 .0600 27727 27728
LR 1 3/4 6 2 1/4 .7200 .1200 27718 27719
LR 1 3/4 6 3 3/8 .7200 .1200 27731 27732
LR 1 1/4 1 6 3 3/8 .9700 .0150 27862 27863
UNCOATED LR 1 1/4 1 6 3 3/8 .9700 .0300 27864 27865
1
FC-5 LR 1 1/4 1 6 3 3/8 .9700 .1200 27870 27871
LR 1 1/4 1 7 4 3/8 .9700 .1200 27883 27884
I M Metric
LR 20.00 6.00 100.00 50.00 5.75 0.50 27215 27216
IMPERIAL METRIC
6.00 LR 20.00 6.00 100.00 50.00 5.75 1.00 27955
LR 20.00 6.00 100.00 50.00 5.75 2.00 27945
LR 20.00 8.00 100.00 50.00 7.70 0.50 27327 27328
8.00
LR 20.00 8.00 100.00 50.00 7.70 1.00 27329 27330
LR 26.00 10.00 100.00 57.00 9.60 0.50 27387 27388
10.00
LR 26.00 10.00 100.00 57.00 9.60 1.00 27389 27390
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose
