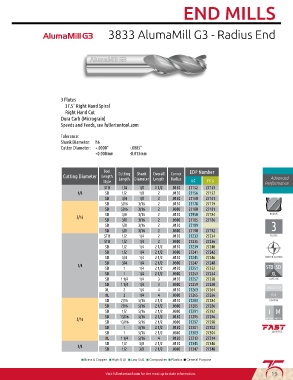

Page 21 - Fullerton Tool Catalog

END MILLS

3 Flutes
37.5˚ Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.0005”
+0.000mm -0.013mm

Tool Cutting Shank Overall Corner EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style UC FC 5
STB 1/4 1/8 1 1/2 .0150 27152 27153
1/8 SD 1/2 1/8 2 .0150 27156 27157
SD 3/4 1/8 2 .0150 27160 27161
SD 5/16 3/16 2 .0150 27178 27179
SD 5/16 3/16 2 .0300 27180 27181
SD 3/8 3/16 2 .0150 27950 27184
3/16
SD 3/8 3/16 2 .0300 27185 27186
SD 5/8 3/16 2 .0150 27189
SD 5/8 3/16 2 .0300 27190 27192
STB 1/2 1/4 2 .0150 27233 27234
STB 1/2 1/4 2 .0300 27235 27236
SD 1/2 1/4 2 1/2 .0150 27239 27240
SD 1/2 1/4 2 1/2 .0300 27241 27242
SD 3/4 1/4 2 1/2 .0150 27245 27246
SD 3/4 1/4 2 1/2 .0300 27247 27248
1/4
SD 1 1/4 2 1/2 .0150 27251 27252
SD 1 1/4 2 1/2 .0300 27253 27254
SD 1 1/4 1/4 3 .0150 27257 27258
SD 1 1/4 1/4 3 .0300 27259 27260
XL 2 1/4 4 .0150 27263 27264 UNCOATED
XL 2 1/4 4 .0300 27265 27266 FC-5
SD 7/16 5/16 2 1/2 .0150 27283 27284
SD 7/16 5/16 2 1/2 .0300 27285 27286
SD 1/2 5/16 2 1/2 .0300 27291 27292 I M
SD 13/16 5/16 2 1/2 .0150 27295 27296
5/16 IMPERIAL METRIC
SD 13/16 5/16 2 1/2 .0300 27297 27298
SD 1 5/16 2 1/2 .0150 27301 27302
SD 1 5/16 2 1/2 .0300 27303 27304
XL 1 1/4 5/16 4 .0150 27313 27314
SD 1/2 3/8 2 1/2 .0150 27345 27346
3/8
SD 1/2 3/8 2 1/2 .0300 27347 27348
■

Visit fullertontool.com for the most up to date information. 19
