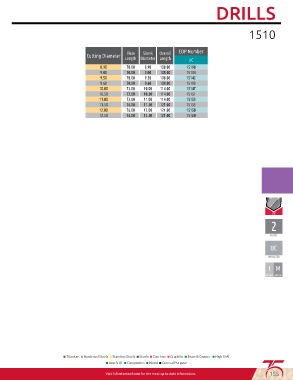

Page 157 - Fullerton Tool Catalog

DRILLS

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
8.90 70.00 8.90 108.00 15198
9.00 70.00 9.00 108.00 15134
9.50 70.00 9.50 108.00 15142
9.60 70.00 9.60 108.00 15193
10.00 73.00 10.00 114.00 15147
10.50 73.00 10.50 114.00 15151
11.00 73.00 11.00 114.00 15153
11.50 76.00 11.50 121.00 15155
12.00 76.00 12.00 121.00 15158
12.50 76.00 12.50 121.00 15160

UNCOATED

I M
IMPERIAL METRIC

■

Visit fullertontool.com for the most up to date information. 155
