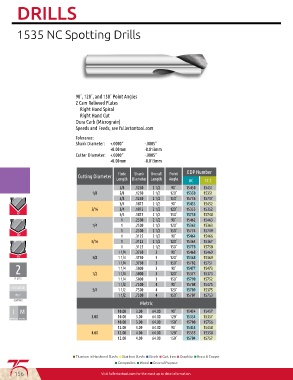

Page 158 - Fullerton Tool Catalog

90˚, 120˚, and 150˚ Point Angles
2 Cam Relieved Flutes
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: +.0000” -.0005”
+0.00mm -0.013mm
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm

Cutting Diameter Flute Shank Overall Point EDP Number
Length Diameter Length Angle UC FC 7
5/8 .1250 2 1/2 90˚ 15450 15451
1/8 5/8 .1250 2 1/2 120˚ 15350 15351
5/8 .1250 2 1/2 150˚ 15736 15747
3/4 .1875 2 1/2 90˚ 15453 15452
3/16 3/4 .1875 2 1/2 120˚ 15353 15352
3/4 .1875 2 1/2 150˚ 15758 15748
1 .2500 2 1/2 90˚ 15462 15463
1/4 1 .2500 2 1/2 120˚ 15362 15363
1 .2500 2 1/2 150˚ 15774 15749
1 .3125 2 1/2 90˚ 15464 15466
5/16 1 .3125 2 1/2 120˚ 15364 15367
1 .3125 2 1/2 150˚ 15778 15750
1 1/4 .3750 3 90˚ 15468 15469
3/8 1 1/4 .3750 3 120˚ 15368 15369
1 1/4 .3750 3 150˚ 15782 15751
1 1/4 .5000 3 90˚ 15477 15473
1/2 1 1/4 .5000 3 120˚ 15377 15373
1 1/4 .5000 3 150˚ 15790 15752
1 1/2 .7500 4 90˚ 15708 15475
3/4 1 1/2 .7500 4 120˚ 15709 15375
1 1/2 .7500 4 150˚ 15707 15753
Metric
10.00 3.00 64.00 90˚ 15454 15457
3.00 10.00 3.00 64.00 120˚ 15354 15357
10.00 3.00 64.00 150˚ 15700 15756
12.00 4.00 64.00 90˚ 15455 15458
4.00 12.00 4.00 64.00 120˚ 15355 15358
12.00 4.00 64.00 150˚ 15704 15757

156
