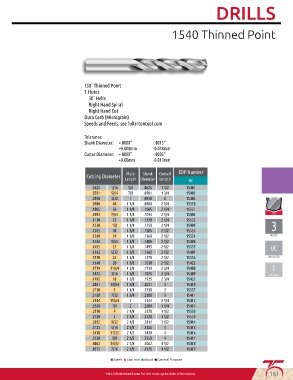

Page 163 - Fullerton Tool Catalog

DRILLS

150˚ Thinned Point
3 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: +.0000” -.0015”
+0.000mm -0.038mm
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
.0625 1/16 3/4 .0625 1 1/2 15401
.0781 5/64 7/8 .0781 1 3/4 15402
.0938 3/32 1 .0938 2 15403
.0980 40 1 1/4 .0980 2 1/4 15550
.1065 36 1 1/4 .1065 2 1/4 15551
.1094 7/64 1 1/4 .1094 2 1/4 15404
.1130 33 1 1/4 .1130 2 1/4 15552
.1250 1/8 1 1/4 .1250 2 1/4 15405
.1285 30 1 3/8 .1285 2 1/2 15553
.1360 29 1 3/8 .1360 2 1/2 15554
.1406 9/64 1 3/8 .1406 2 1/2 15406
.1495 25 1 3/8 .1495 2 1/2 15555
.1562 5/32 1 3/8 .1562 2 1/2 15407
.1570 22 1 3/8 .1570 2 1/2 15556 UNCOATED
.1610 20 1 3/8 .1610 2 1/2 15422
.1719 11/64 1 5/8 .1719 2 3/4 15408 I
.1875 3/16 1 5/8 .1875 2 3/4 15409 IMPERIAL
.1935 10 1 5/8 .1935 2 3/4 15423
.2031 13/64 1 3/4 .2031 3 15410
.2130 3 1 3/4 .2130 3 15557
.2188 7/32 1 3/4 .2188 3 15411
.2344 15/64 2 .2344 3 1/4 15412
.2500 1/4 2 .2500 3 1/4 15413
.2570 F 2 1/8 .2570 3 1/2 15558
.2720 I 2 1/8 .2720 3 1/2 15559
.2812 9/32 2 1/8 .2812 3 1/2 15414
.3125 5/16 2 3/8 .3125 4 15415
.3438 11/32 2 1/2 .3438 4 15416
.3750 3/8 2 1/2 .3750 4 15417
.4062 13/32 2 7/8 .4062 4 1/2 15418
.4375 7/16 2 7/8 .4375 4 1/2 15419

■

Visit fullertontool.com for the most up to date information. 161
