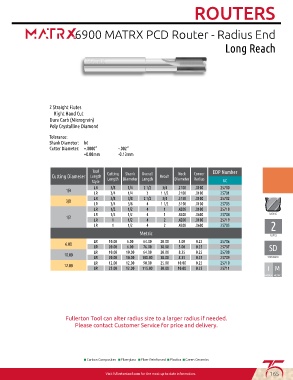

Page 167 - Fullerton Tool Catalog

2 Straight Flutes
Right Hand Cut
Dura Carb (Micrograin)
Poly Crystalline Diamond

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.13mm

Tool EDP Number
Neck
Cutting Diameter Length Cutting Shank Overall Reach Diameter Corner
Length Diameter Length
Radius
Style UC
LR 3/8 1/4 2 1/2 3/4 .2100 .0100 25700
1/4
LR 3/4 1/4 3 1 1/2 .2100 .0100 25701
LR 3/8 3/8 2 1/2 3/4 .3150 .0100 25702
3/8
LR 3/4 3/8 4 1 1/2 .3150 .0100 25703
LR 1/2 1/2 4 1 .4200 .0100 25718
LR 1/2 1/2 4 1 .4200 .0600 25704
1/2
LR 1 1/2 4 2 .4200 .0100 25719
LR 1 1/2 4 2 .4200 .0600 25705
Metric
LR 10.00 6.00 64.00 20.00 5.00 0.25 25706
6.00
LR 20.00 6.00 76.00 38.00 5.00 0.25 25707
LR 10.00 10.00 64.00 20.00 8.35 0.25 25708
10.00
LR 20.00 10.00 100.00 38.00 8.35 0.25 25709
LR 12.00 12.00 90.00 25.00 10.00 0.25 25710
12.00
LR 25.00 12.00 115.00 50.00 10.00 0.25 25711

Fullerton Tool can alter radius size to a larger radius if needed.
Please contact Customer Service for price and delivery.

165
