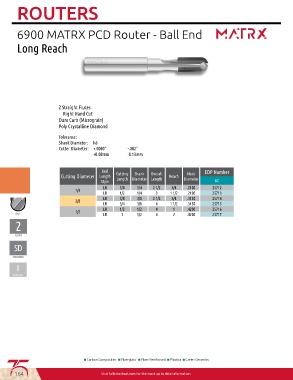

Page 166 - Fullerton Tool Catalog

ROUTERS

6900 MATRX PCD Router - Ball End

2 Straight Flutes
Right Hand Cut
Dura Carb (Micrograin)
Poly Crystalline Diamond

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.13mm

Tool EDP Number
Neck
Cutting Diameter Length Cutting Shank Overall Reach Diameter
Length Diameter Length
Style UC
LR 3/8 1/4 2 1/2 3/4 .2100 25712
1/4
LR 1/2 1/4 3 1 1/2 .2100 25713
LR 3/8 3/8 2 1/2 3/4 .3150 25714
3/8
LR 3/4 3/8 4 1 1/2 .3150 25715
LR 1/2 1/2 4 1 .4200 25716
1/2
LR 1 1/2 4 2 .4200 25717

I

IMPERIAL
