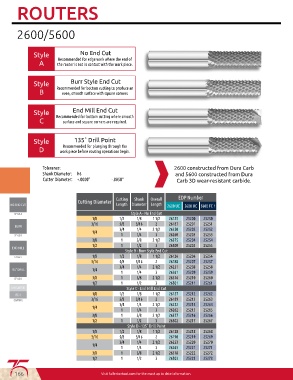

Page 168 - Fullerton Tool Catalog

ROUTERS

2600/5600

Style No End Cut
Recommended for edge work where the end of
A the router is not in contact with the work piece.

Style Burr Style End Cut
B Recommended for bottom cutting to produce an
even, smooth surface with square corners

End Mill End Cut
Style Recommended for bottom cutting where smooth
C surface and square corners are required.

Style 135˚ Drill Point
Recommended for plunging through the
D work piece before routing operations begin.

Tolerance: 2600 constructed from Dura Carb
Shank Diameter: h6 and 5600 constructed from Dura
Cutter Diameter: +.0000” -.0050” Carb 3D wear-resistant carbide.

Cutting Shank Overall EDP Number
Cutting Diameter
Length Diameter Length 2600 UC 5600 UC 5600 FC 1
Style A - No End Cut
1/8 1/2 1/8 1 1/2 26125 25200 25250
3/16 5/8 3/16 2 26187 25201 25251
3/4 1/4 2 1/2 26250 25202 25252
1/4
1 1/4 3 26260 25203 25253
3/8 1 3/8 2 1/2 26375 25204 25254
1/2 1 1/2 3 26500 25205 25255
Style B - Burr Style End Cut
1/8 1/2 1/8 1 1/2 26126 25206 25256
3/16 5/8 3/16 2 26188 25207 25257
3/4 1/4 2 1/2 26251 25208 25258
1/4
1 1/4 3 26261 25209 25259
3/8 1 3/8 2 1/2 26376 25210 25260
1/2 1 1/2 3 26501 25211 25261
UNCOATED Style C - End Mill End Cut
FC-1 1/8 1/2 1/8 1 1/2 26127 25212 25262
3/16 5/8 3/16 2 26189 25213 25263
3/4 1/4 2 1/2 26252 25214 25264
1/4
1 1/4 3 26262 25215 25265
3/8 1 3/8 2 1/2 26377 25216 25266
1/2 1 1/2 3 26502 25217 25267
Style D - 135˚ Drill Point
1/8 1/2 1/8 1 1/2 26128 25218 25268
3/16 5/8 3/16 2 26190 25219 25269
3/4 1/4 2 1/2 26253 25220 25270
1/4
1 1/4 3 26263 25221 25271
3/8 1 3/8 2 1/2 26378 25222 25272
1/2 1 1/2 3 26503 25223 25273

166 Visit fullertontool.com for the most up to date information.
