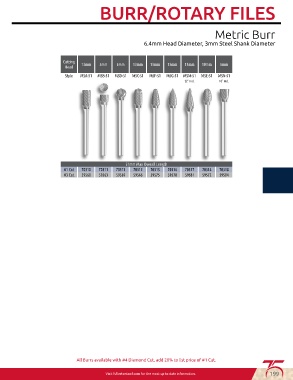

Page 201 - Fullerton Tool Catalog

BURR/ROTARY FILES

Metric Burr

6.4mm Head Diameter, 3mm Steel Shank Diameter

Cutting
Head 13mm 5mm 6mm 13mm 13mm 13mm 13mm 10mm 6mm
Style MSA-51 MSB-51 MSD-51 MSC-51 MSF-51 MSG-51 MSM-51 MSE-51 MSN-51
22˚ Incl. 10˚ Incl.

51mm Max Overall Length
#1 Cut 70310 70311 70313 70312 70315 70316 70317 70314 70318
#3 Cut 59560 59563 59569 59566 59575 59578 59581 59572 59584

All Burrs available with #4 Diamond Cut, add 20% to list price of #1 Cut.

Visit fullertontool.com for the most up to date information. 199
