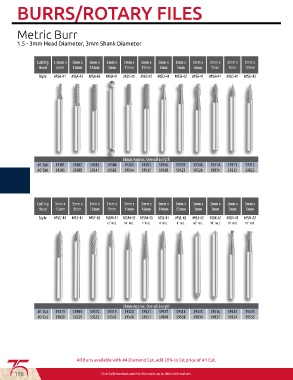

Page 200 - Fullerton Tool Catalog

BURRS/ROTARY FILES

Metric Burr

1.5 - 3mm Head Diameter, 3mm Shank Diameter

Cutting 1.5mm x 2mm x 3mm x 3mm x 2mm x 3mm x 2mm x 3mm x 3mm x 3mm x 3mm x 3mm x
Head 6mm 13mm 15mm 3mm 11mm 15mm 2mm 3mm 6mm 7mm 7mm 10mm
Style MSA-41 MSA-42 MSA-43 MSB-41 MSC-41 MSC-42 MSD-41 MSD-42 MSE-41 MSH-41 MSG-41 MSG-43

38mm Approx. Overall Length
#1 Cut 59301 59302 59303 59300 59304 59305 59306 59307 59308 59314 59311 59312
#3 Cut 59505 59508 59511 59502 59514 59517 59520 59523 59526 59831 59535 59825

Cutting 3mm x 3mm x 3mm x 3mm x 3mm x 3mm x 3mm x 3mm x 3mm x 3mm x 2mm x 3mm x
Head 15mm 8mm 15mm 9mm 11mm 16mm 10mm 13mm 3mm 3mm 3mm 5mm
Style MSG-44 MSF-41 MSF-42 MSM-41 MSM-42 MSM-43 MSL-41 MSL-42 MSJ-42 MSK-42 MSN-41 MSN-42
12˚ Incl. 14˚ Incl. 7˚ Incl. 8˚ Incl. 8˚ Incl. 60˚ Incl. 90˚ Incl. 10˚ Incl. 10˚ Incl.

38mm Approx. Overall Length
#1 Cut 59313 59309 59310 59319 59320 59321 59317 59318 59315 59316 59324 59323
#3 Cut 59828 59529 59532 59545 59548 59551 59840 59538 59834 59837 59554 59557

All Burrs available with #4 Diamond Cut, add 20% to list price of #1 Cut.
