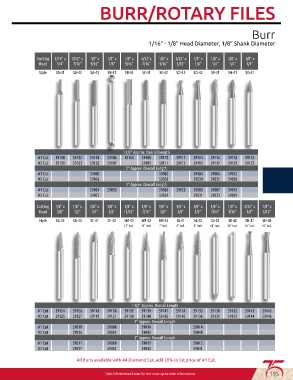

Page 197 - Fullerton Tool Catalog

Burr

1/16” - 1/8” Head Diameter, 1/8” Shank Diameter

Cutting 1/16” x 3/32” x 1/8” x 1/8” x 1/8” x 3/32”x 1/8” x 3/32” x 1/8” x 1/8” x 1/8” x 1/8” x
Head 1/4” 7/16” 9/16” 1/8” 9/16” 7/16” 9/16” 3/32” 1/8” 1/4” 1/4” 1/4”
Style SA-41 SA-42 SA-43 SB-41 SB-43 SC-41 SC-42 SD-41 SD-42 SE-41 SH-41 SG-41

1 1/2” Approx. Overall Length
#1 Cut 59100 59102 59104 59106 40160 59108 59110 59112 59114 59116 59128 59122
#3 Cut 59101 59103 59105 59107 59109 59111 59113 59115 59117 59129 59123
2” Approx. Overall Length
#1 Cut 59000 59002 59004 59006 59012
#3 Cut 59026 59028 59030 59032 59038
3” Approx. Overall Length
#1 Cut 59001 59050 59003 59055 59005 59007 59013
#3 Cut 59027 59029 59031 59033 59039

Cutting 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 1/8” x 3/32” x 1/8” x
Head 3/8” 1/2” 1/4” 1/2” 11/32” 7/16” 5/8” 3/8” 1/2” 7/64” 1/16” 1/8” 3/16”

Style SG-43 SG-44 SF-41 SF-42 SM-41 SM-42 SM-43 SL-41 SL-42 SJ-42 SK-42 SN-41 SN-42
12˚ Incl. 14˚ Incl. 7˚ Incl. 8˚ Incl. 8˚ Incl. 60˚ Incl. 90˚ Incl. 10˚ Incl. 10˚ Incl.

1 1/2” Approx. Overall Length
#1 Cut 59124 59126 59118 59120 59137 59139 59141 59134 59135 59130 59132 59143 59145
#3 Cut 59125 59127 59119 59121 59138 59140 59142 59147 59136 59131 59133 59144 59146
2” Approx. Overall Length
#1 Cut 59010 59008 59016 59014
#3 Cut 59036 59034 59042 59040
3” Approx. Overall Length
#1 Cut 59011 59009 59017 59015
#3 Cut 59037 59035 59043 59041

All Burrs available with #4 Diamond Cut, add 20% to list price of #1 Cut.

Visit fullertontool.com for the most up to date information. 195
