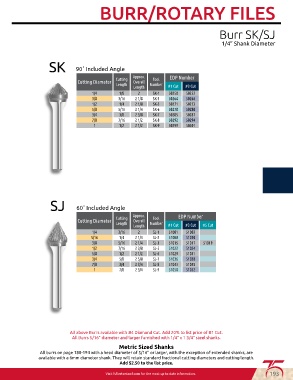

Page 195 - Fullerton Tool Catalog

BURR/ROTARY FILES

Burr SK/SJ

1/4” Shank Diameter

SK 90˚ Included Angle

Approx. EDP Number
Tool
Cutting Diameter Cutting Overall Number
Length
Length #1 Cut #3 Cut
1/4 1/8 2 SK-1 50250 50252
3/8 3/16 2 1/8 SK-3 50264 50266
1/2 1/4 2 1/8 SK-5 50271 50273
5/8 5/16 2 1/4 SK-6 50278 50280
3/4 3/8 2 3/8 SK-7 50285 50287
7/8 7/16 2 1/2 SK-8 50292 50294
1 1/2 2 1/2 SK-9 50299 50301

SJ 60˚ Included Angle

Approx. Tool EDP Number
Cutting
Cutting Diameter Overall
Length Number
Length #1 Cut #3 Cut #5 Cut
1/4 3/16 2 SJ-1 51001 51003
5/16 1/4 2 1/4 SJ-2 51008 51010
3/8 5/16 2 1/4 SJ-3 51015 51017 51019
1/2 7/16 2 3/8 SJ-5 51022 51024
5/8 1/2 2 1/2 SJ-6 51029 51031
3/4 5/8 2 5/8 SJ-7 51036 51038
7/8 3/4 2 3/4 SJ-8 51043 51045
1 7/8 2 3/4 SJ-9 51050 51052

All above Burrs available with #4 Diamond Cut. Add 20% to list price of #1 Cut.
All Burrs 5/16” diameter and larger furnished with 1/4” x 1 3/4” steel shanks.

Metric Sized Shanks
All burrs on page 188-194 with a head diameter of 5/16” or larger, with the exception of extended shanks, are
available with a 6mm diameter shank. They will retain standard fractional cutting diameters and cutting length.
Add $2.50 to the list price.

Visit fullertontool.com for the most up to date information. 193
