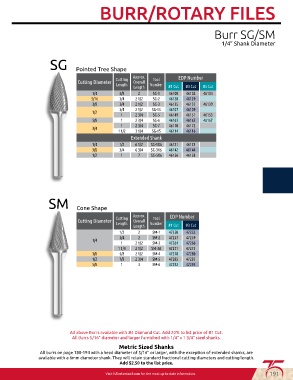

Page 193 - Fullerton Tool Catalog

BURR/ROTARY FILES

Burr SG/SM

1/4” Shank Diameter

SG Pointed Tree Shape

Approx. Tool EDP Number
Cutting
Cutting Diameter Overall
Length Number
Length #1 Cut #3 Cut #5 Cut
1/4 5/8 2 SG-1 46100 46102 46104
5/16 3/4 2 1/2 SG-2 46128 46129
3/8 3/4 2 1/2 SG-3 46135 46137 46139
3/4 2 1/2 SG-13 46107 46109
1/2
1 2 3/4 SG-5 46149 46151 46153
5/8 1 2 3/4 SG-6 46163 46165 46167
1 2 3/4 SG-7 46170 46172
3/4
1 1/2 3 1/4 SG-15 46114 46116
Extended Shank
1/4 1/2 6 1/2 SG-1X6 46121 46123
3/8 3/4 6 3/4 SG-3X6 46142 46144
1/2 1 7 SG-5X6 46156 46158

SM Cone Shape

Approx. EDP Number
Cutting Diameter Cutting Overall Tool
Length Number
Length #1 Cut #3 Cut
1/2 2 SM-1 47250 47252
3/4 2 SM-2 47257 47259
1/4
1 2 1/2 SM-3 47264 47266
1 1/4 2 1/2 SM-3A 47271 47273
3/8 5/8 2 1/2 SM-4 47278 47280
1/2 7/8 2 3/4 SM-5 47285 47287
5/8 1 3 SM-6 47292 47294

All above Burrs available with #4 Diamond Cut. Add 20% to list price of #1 Cut.
All Burrs 5/16” diameter and larger furnished with 1/4” x 1 3/4” steel shanks.

Metric Sized Shanks
All burrs on page 188-194 with a head diameter of 5/16” or larger, with the exception of extended shanks, are
available with a 6mm diameter shank. They will retain standard fractional cutting diameters and cutting length.
Add $2.50 to the list price.
