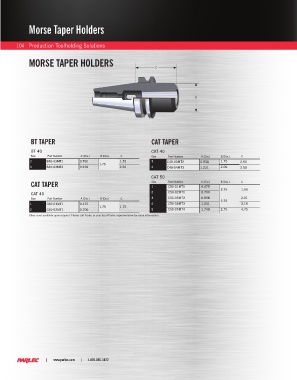

Page 106 - Parlec Catalog

Morse Taper Holders

104 Production Toolholding Solutions

MORSE TAPER HOLDERS
C

B

BT TAPER CAT TAPER

BT 40 CAT 40
Size Part Number A (Dia.) B (Dia.) C Size Part Number A (Dia.) B (Dia.) C
2 B40-02MT1 0.700 1.75 3 C40-03MT2 0.938 1.75 2.50
1.75
3 B40-03MT2 0.938 2.50 4 C40-04MT3 1.231 2.00 3.50

CAT 50
CAT TAPER Size Part Number A (Dia.) B (Dia.) C
C50-01MT1
0.475
1
2.75 1.50
CAT 40 2 C50-02MT1 0.700
Size Part Number A (Dia.) B (Dia.) C 3 C50-03MT2 0.938 2.25 2.31
1 C40-01MT1 0.475 4 C50-04MT3 1.231 3.18
1.75 1.75
2 C40-02MT1 0.700 5 C50-05MT4 1.748 2.75 4.75
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
