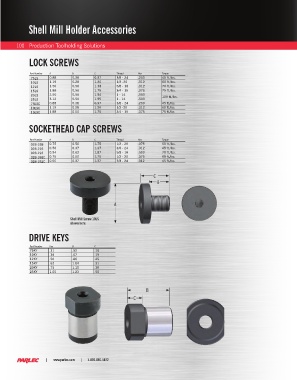

Shell Mill Holder Accessories

100 Production Toolholding Solutions

LOCK SCREWS

Part Number A B C Thread Hex Torque
75LS 0.88 0.38 0.97 3/8 - 24 .250 45 ft./lbs.
10LS 1.19 0.28 1.20 1/2 -20 .312 60 ft./lbs.
12LS 1.50 0.50 1.38 5/8 - 18 .312 70 ft./lbs.
15LS 1.88 0.50 1.75 3/4 - 16 .375 75 ft./lbs.
20LS 2.50 0.50 1.94 1 - 14 .500 100 ft./lbs.
25LS 3.12 0.50 1.95 1 - 14 .500
75LSC 0.88 0.38 0.97 3/8 - 24 .250 45 ft./lbs.
10LSC 1.19 0.28 1.20 1/2 -20 .312 60 ft./lbs.
15LSC 1.88 0.50 1.75 3/4 - 16 .375 75 ft./lbs

SOCKETHEAD CAP SCREWS

Part Number A B C Thread Hex Torque
028-188 0.75 0.50 1.75 1/2 - 20 .375 60 ft./lbs.
028-192 0.56 0.37 1.37 3/8 - 24 .312 45 ft./lbs.
028-193 0.94 0.62 1.87 5/8 - 18 .500 70 ft./lbs.
028-188C 0.75 0.50 1.75 1/2 - 20 .375 60 ft./lbs.
028-192C 0.56 0.37 1.37 3/8 - 24 .312 45 ft./lbs.

C
B

A

Shell Mill Screw 10LS
shown here.

DRIVE KEYS

Part Number Key B C
75KY .31 .52 .16
10KY .38 .67 .19
12KY .50 .86 .25
15KY .62 1.04 .31
20KY .75 1.10 .38
25KY 1.00 1.23 .50

B
C
