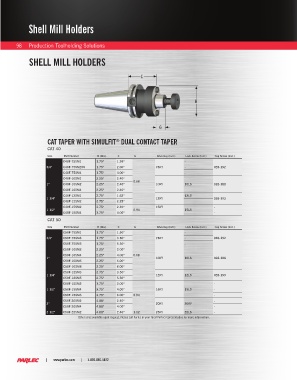

Page 100 - Parlec Catalog

Shell Mill Holders

98 Production Toolholding Solutions

SHELL MILL HOLDERS

C

B

G

CAT TAPER WITH SIMULFIT DUAL CONTACT TAPER
®
CAT 40
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
C40F-75SM1 1.75" 1.38" -
3/4" C40F-75SM200 1.75" 2.00" 75KY - 028-192
C40F-75SM4 1.75" 4.00" -
C40F-10SM1 2.25" 2.40"
0.68
1" C40F-10SM2 2.25" 2.40" 10KY 10LS 028-188
C40F-10SM4 2.25" 2.40"
C40F-12SM1 2.75" 1.62" 12LS
1 1/4" 12KY 028-193
C40F-12SM2 2.75" 2.25"
C40F-15SM2 3.75" 2.40" 15KY -
1 1/2" 0.94 15LS
C40F-15SM4 3.75" 4.00" -
CAT 50
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
C50F-75SM1 1.75" 1.50" -
3/4" C50F-75SM3 1.75" 3.50" 75KY - 028-192
C50F-75SM5 1.75" 5.50" -
C50F-10SM2 2.25" 2.00"
C50F-10SM4 2.25" 4.00" 0.68
1" 10KY 10LS 028-188
C50F-10SM6 2.25" 6.00"
C50F-10SM8 2.25" 8.00"
C50F-12SM3 2.75" 3.50"
1 1/4" 12KY 12LS 028-193
C50F-12SM5 2.75" 5.50"
C50F-15SM2 3.75" 2.00" -
1 1/2" C50F-15SM4 3.75" 4.00" 15KY 15LS -
C50F-15SM6 3.75" 6.00" 0.94 -
C50F-20SM2 4.88" 2.40" -
2" 20KY 20KY
C50F-20SM4 4.88" 4.00" -
2 1/2" C50F-25SM2 4.88" 2.40" 1.12 25KY 25LS -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
