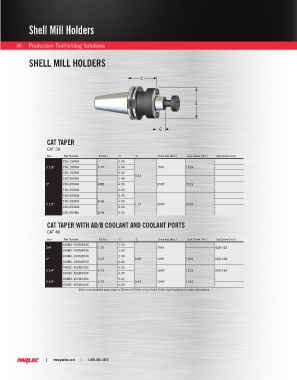

Page 98 - Parlec Catalog

Shell Mill Holders

96 Production Toolholding Solutions

SHELL MILL HOLDERS

C

B

G

CAT TAPER
CAT 50
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
C50-15SM2 2.00 -
1 1/2" C50-15SM4 3.75 4.00 15KY 15LS -
C50-15SM6 6.00 -
0.94
C50-20SM2 2.40 -
2" C50-20SM4 4.88 4.00 20KY 20LS -
C50-20SM6 6.00 -
C50-25SM2 2.40 -
C50-25SM4 4.88 4.00 -
2 1/2" 1.12 25KY 25LS
C50-25SM6 6.00 -
C50-25FM1 5.06 2.25 -

CAT TAPER WITH AD/B COOLANT AND COOLANT PORTS
CAT 40

Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
C40BC-75SM150C 1.50 -
3/4" 1.75 75KY 028-192
C40BC-75SM400C 1.50 -
C40BC-10SM200C 2.00
1" 2.25 0.68 10KY 10LS 028-188
C40BC-10SM400C 4.00
C40BC-12SM225C 2.25
1 1/4" 2.75 12KY 12LS 028-193
C40BC-12SM400C 4.00
C40BC-15SM240C 2.40 -
1 1/2" 3.75 0.94 15KY 15LS
C40BC-15SM400C 4.00 -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
