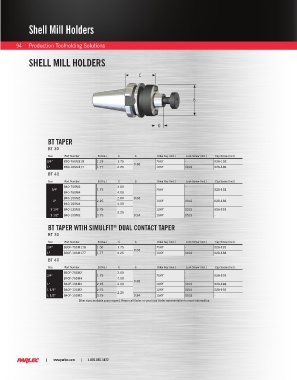

Page 96 - Parlec Catalog

Shell Mill Holders

94 Production Toolholding Solutions

SHELL MILL HOLDERS

C

B

G

BT TAPER

BT 30
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
3/4” B30-75SM118 1.18 1.75 75KY - 028-192
0.68
1” B30-10SM177 1.77 2.25 10KY 10LS 028-188
BT 40
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
B40-75SM2 2.00 -
3/4" 1.75 75KY 028-192
B40-75SM4 4.00
B40-10SM2 2.00 0.68
1" 2.25 10KY 10LS 028-188
B40-10SM4 4.00
1 1/4" B40-12SM2 2.75 12KY 12LS 028-193
2.25
1 1/2" B40-15SM2 3.75 0.94 15KY 15LS -
BT TAPER WTIH SIMULFIT DUAL CONTACT TAPER
®
BT 30
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
3/4” B30F-75SM118 1.00 1.75 75KY - 028-192
0.68
1” B30F-10SM177 1.77 2.25 10KY 10LS 028-188
BT 40
Size Part Number B (Dia.) C G Drive Key (Incl.) Lock Screw (Incl.) Cap Screw (Incl.)
B40F-75SM2 2.00 -
3/4" 1.75 75KY 028-192
B40F-75SM4 4.00 -
0.68
1" B40F-10SM2 2.25 2.00 10KY 10LS 028-188
1 1/4" B40F-12SM2 2.75 12KY 12LS 028-193
2.25
1 1/2" B40F-15SM2 3.75 0.94 15KY 15LS -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
