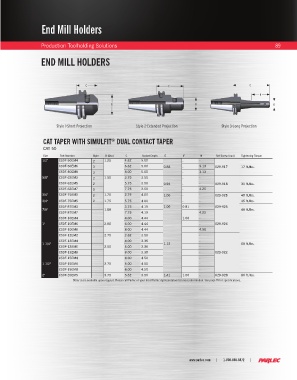

Page 91 - Parlec Catalog

End Mill Holders

Production Toolholding Solutions 89

END MILL HOLDERS

C C C
H

B B B

Style 1-Short Projection Style 2-Extended Projection Style 3-Long Projection

CAT TAPER WITH SIMULFIT DUAL CONTACT TAPER
®
CAT 50
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
1/2" C50F-50EM4 2 1.25 4.62 5.00 - -
C50F-50EM6 3 6.62 5.00 0.88 - 3.13 029-917 17 ft./lbs.
C50F-50EM8 3 8.00 5.00 - 3.13
5/8" C50F-62EM3 2 1.50 3.75 3.50 - -
C50F-62EM5 2 5.75 3.50 0.94 - - 029-918 31 ft./lbs.
C50F-62EM7 3 7.75 3.50 - 4.25
3/4" C50F-75EM3 2 1.75 3.75 4.00 1.00 - - 029-925 45 ft./lbs.
3/4" C50F-75EM5 2 1.75 5.75 4.00 - - 45 ft./lbs.
C50F-87EM3 3.75 4.19 1.00 0.81 - 029-925
7/8" 1.88 48 ft./lbs.
C50F-87EM7 7.75 4.19 4.25
C50F-10EM4 4.00 4.44 1.00 -
1" C50F-10EM6 2.00 6.00 4.44 - 029-926
C50F-10EM8 8.00 4.44 4.50
C50F-12EM2 2.75 2.62 3.50 -
C50F-12EM4 4.00 3.35 -
1 1/4" 1.12 69 ft./lbs.
C50F-12EM6 2.50 6.00 3.35 -
C50F-12EM8 8.00 3.35 - 029-922
C50F-15EM4 4.00 4.50 -
1 1/2" C50F-15EM6 2.75 6.00 4.50 -
C50F-15EM8 8.00 4.50 -
2" C50F-20EM5 3.75 5.62 3.50 1.41 1.50 - 029-928 80 ft./lbs.
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
