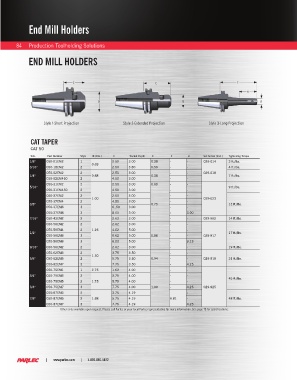

Page 86 - Parlec Catalog

End Mill Holders

84 Production Toolholding Solutions

END MILL HOLDERS

C C C
H

B B B

Style 1-Short Projection Style 2-Extended Projection Style 3-Long Projection

CAT TAPER

CAT 50
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
1/8" C50-01EM2 1 2.50 3.00 0.38 - - 029-014 3 ft./lbs.
0.69
3/16" C50-18EM2 2 2.50 3.80 0.50 - - 4 ft./lbs.
C50-02EM2 2 2.50 3.00 - - 029-018
1/4" 0.88 0.38 7 ft./lbs.
C50-02EM450 2 4.50 3.00 - -
C50-31EM2 2 2.50 3.00 0.60 - -
5/16" 9 ft./lbs.
C50-31EM450 2 4.50 3.00 - -
C50-37EM2 2 2.50 3.00 - -
1.00 029-023
C50-37EM4 2 4.50 3.00 - -
3/8" 0.75 12 ft./lbs.
C50-37EM6 3 6..50 3.00 - -
C50-37EM8 3 8.00 3.00 - 3.00
7/16" C50-43EM2 2 2.62 3.00 - - 029-902 14 ft./lbs.
C50-50EM2 2 2.62 3.00 - -
C50-50EM4 2 1.25 4.62 5.00 - -
1/2" 17 ft./lbs.
C50-50EM6 3 6.62 5.00 0.88 - - 029-917
C50-50EM8 3 8.00 5.00 - 3.13
9/16" C50-56EM2 2 2.62 3.00 - - 19 ft./lbs.
C50-62EM3 2 3.75 3.50 - -
1.50
5/8" C50-62EM5 2 5.75 3.50 0.94 - - 029-918 31 ft./lbs.
C50-62EM7 3 7.75 3.50 - 4.25
C50-75EM1 1 2.75 1.62 4.00 - -
3/4" C50-75EM3 2 3.75 4.00 - -
45 ft./lbs.
C50-75EM5 2 1.75 5.75 4.00 - -
3/4" C50-75EM7 3 7.75 4.00 1.00 - 4.25 029-925
C50-87EM3 2 3.75 4.19 -
7/8" C50-87EM5 2 1.88 5.75 4.19 0.81 - 48 ft./lbs.
C50-87EM7 3 7.75 4.19 4.25
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
