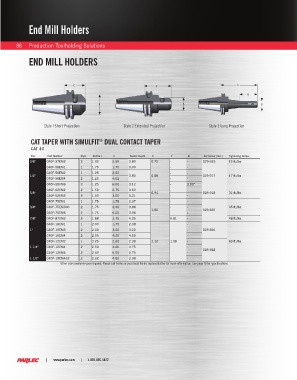

Page 90 - Parlec Catalog

End Mill Holders

88 Production Toolholding Solutions

END MILL HOLDERS

C C C
H

B B B

Style 1-Short Projection Style 2-Extended Projection Style 3-Long Projection

CAT TAPER WITH SIMULFIT DUAL CONTACT TAPER
®
CAT 40
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
3/8" C40F-37EM2 2 1.00 2.50 3.80 0.75 - - 029-023 12 ft./lbs.
C40F-50EM1 1 1.75 1.75 3.00 - -
C40F-50EM2 1 1.25 2.62 - -
1/2" 3.80 0.88 029-917 17 ft./lbs.
C40F-50EM4 2 1.25 4.62 - -
C40F-50EM6 3 1.25 6.00 3.12 - 3.00"
C40F-62EM2 2 1.50 2.75 3.62 - -
5/8" 0.94 029-918 31 ft./lbs.
C40F-62EM3 3 1.50 3.00 3.21 - -
C40F-75EM1 1 1.75 1.75 2.37 - -
3/4" C40F-75EM300 2 1.75 3.00 3.94 - - 45 ft./lbs.
1.00 029-925
C40F-75EM6 2 1.75 6.00 3.94 -
7/8" C40F-87EM3 2 1.88 3.75 4.25 0.81 - 48 ft./lbs.
C40F-10EM1 1 2.00 1.75 2.38 -
1" C40F-10EM3 2 2.00 3.00 3.00 - 029-926
C40F-10EM4 2 2.00 4.00 4.50 -
C40F-12EM2 1 2.25 2.00 2.38 1.12 1.00 - 69 ft./lbs.
1 1/4" C40F-12EM4 2 2.50 4.00 3.75 -
029-922
C40F-12EM6 2 2.50 6.00 3.75 -
1 1/2" C40F-15EM462 2 2.62 4.62 2.38 -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
