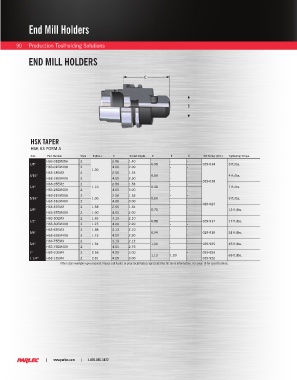

Page 92 - Parlec Catalog

End Mill Holders

90 Production Toolholding Solutions

END MILL HOLDERS

C

B

HSK TAPER

HSK 63 FORM A
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
H63-01EM256 2 2.56 1.40 - -
1/8" 0.38 029-014 3 ft./lbs.
H63-01EM400 2 4.00 2.00 - -
1.00
H63-18EM2 2 2.56 1.53 - -
3/16" 0.50 4 ft./lbs.
H63-18EM400 2 4.00 2.50 - -
029-018
H63-25EM2 2 2.56 1.53 - -
1/4" 1.10 0.38 7 ft./lbs.
H63-25EM400 2 4.00 3.00 - -
H63-31EM256 2 2.56 1.53 - -
5/16" 1.00 0.60 9 ft./lbs.
H63-31EM400 2 4.00 3.00 - -
029-023
H63-37EM2 2 1.38 2.56 1.54 - -
3/8" 0.75 12 ft./lbs.
H63-37EM400 2 1.00 4.00 2.00 - -
H63-50EM3 2 1.63 3.13 2.10 - -
1/2" 0.88 029-917 17 ft./lbs.
H63-50EM400 2 1.25 4.00 2.20 - -
H63-62EM3 2 1.88 3.13 2.10 - -
5/8" 0.94 029-918 31 ft./lbs.
H63-62EM400 2 1.75 4.00 2.90 - -
H63-75EM3 2 3.13 2.12 - -
3/4" 1.94 1.00 029-925 45 ft./lbs.
H63-75EM400 2 4.00 2.75 - -
1" H63-10EM4 2 2.56 4.25 3.00 - 029-926
1.12 1.00 69 ft./lbs.
1 1/4" H63-12EM4 2 2.81 4.25 3.00 - 029-922
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
