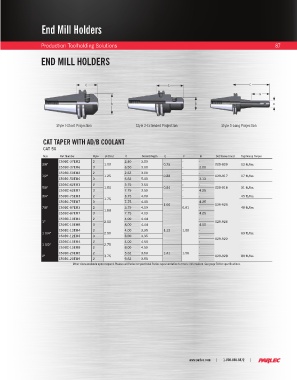

Page 89 - Parlec Catalog

End Mill Holders

Production Toolholding Solutions 87

END MILL HOLDERS

C C C
H

B B B

Style 1-Short Projection Style 2-Extended Projection Style 3-Long Projection

CAT TAPER WITH AD/B COOLANT
CAT 50
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
C50BC-37EM2 2 2.50 3.00 - -
3/8" 1.00 0.75 029-023 12 ft./lbs.
C50BC-37EM6 3 6.50 3.00 - 3.00
C50BC-50EM2 2 2.62 3.00 - -
1/2" 1.25 0.88 029-917 17 ft./lbs.
C50BC-50EM6 3 6.62 5.00 - 3.13
C50BC-62EM3 2 3.75 3.50 - -
5/8" 1.50 0.94 029-918 31 ft./lbs.
C50BC-62EM7 3 7.75 3.50 - 4.25
3/4" C50BC-75EM3 2 3.75 4.00 - - 45 ft./lbs.
1.75
C50BC-75EM7 3 7.75 4.00 4.25
1.00 029-925
7/8" C50BC-87EM3 2 3.75 4.19 0.81 - 48 ft./lbs.
1.88
C50BC-87EM7 3 7.75 4.19 4.25
C50BC-10EM4 2 4.00 4.44 -
1” 2.00 029-926
C50BC-10EM8 3 8.00 4.44 4.50
C50BC-12EM4 2 4.00 3.35 1.12 1.00 -
1 1/4" 2.50 69 ft./lbs.
C50BC-12EM8 3 8.00 3.35 -
029-922
C50BC-15EM4 2 4.00 4.50 -
1 1/2" 2.75
C50BC-15EM8 2 8.00 4.50 -
C50BC-20EM5 2 5.62 3.50 1.41 1.50 -
2" 3.75 029-928 80 ft./lbs.
C50BC-20EM9 2 9.62 3.50 -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
