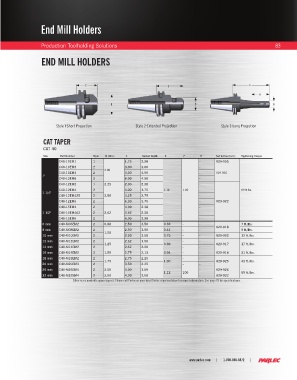

Page 85 - Parlec Catalog

End Mill Holders

Production Toolholding Solutions 83

END MILL HOLDERS

C C C
H

B B B

Style 1-Short Projection Style 2-Extended Projection Style 3-Long Projection

CAT TAPER

CAT 40
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
C40-10EM1 1 1.75 2.38 - 029-955
C40-10EM3 2 3.00 3.00 -
2.00
C40-10EM4 2 4.00 4.50 - 029-926
1"
C40-10EM6 2 6.00 4.50 -
C40-12EM2 1 2.25 2.00 2.38 -
C40-12EM4 2 4.00 3.75 1.12 1.00 - 69 ft.lbs.
1 1/4"
C40-12EM425 2 2.50 4.25 3.75 -
C40-12EM6 2 6.00 3.75 - 029-922
C40-15EM4 2 4.00 2.38 -
1 1/2" C40-15EM462 2 2.62 4.62 2.38 -
C40-15EM6 2 6.00 2.38 -
6 mm C40-M06EM2 2 0.88 2.50 3.50 0.38 - - 7 ft./lbs.
029-018
8 mm C40-M08EM2 2 2.50 3.50 0.44 - - 9 ft./lbs.
1.00
10 mm C40-M10EM2 2 2.50 3.50 0.75 - - 029-902 12 ft./lbs.
12 mm C40-M12EM2 2 2.62 3.50 - -
1.25 0.88 029-917 17 ft./lbs.
14 mm C40-M14EM2 2 2.62 2.00 - -
16 mm C40-M16EM2 2 1.50 2.75 2.13 0.94 - - 029-918 31 ft./lbs.
18 mm C40-M18EM2 2 2.75 2.25 - -
1.75 1.00 029-925 43 ft./lbs.
20 mm C40-M20EM3 2 3.50 2.25 - -
25 mm C40-M25EM4 2 2.00 4.00 3.00 - 029-926
1.12 100 69 ft./lbs.
32 mm C40-M32EM4 2 2.50 4.00 2.60 - 029-922
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
