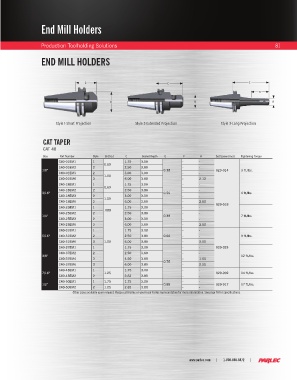

Page 83 - Parlec Catalog

End Mill Holders

Production Toolholding Solutions 81

END MILL HOLDERS

C C C
H

B B B

Style 1-Short Projection Style 2-Extended Projection Style 3-Long Projection

CAT TAPER
CAT 40
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
C40-01EM1 1 1.75 3.00 - -
0.69
C40-01EM2 2 2.50 3.80 - -
1/8" 0.38 029-014 3 ft./lbs.
C40-01EM3 2 3.00 3.00 - -
1.00
C40-01EM6 3 6.00 3.80 - 2.12
C40-18EM1 1 1.75 3.00 - -
0.69
C40-18EM2 2 2.50 3.80 - -
3/16" 0.50 4 ft./lbs.
C40-18EM3 2 3.00 3.00 - -
1.00
C40-18EM6 3 6.00 3.80 - 2.50
029-018
C40-25EM1 1 1.75 3.00 - -
.088
C40-25EM2 2 2.50 3.80 - -
1/4" 0.38 7 ft./lbs.
C40-25EM3 2 3.00 3.00 - -
C40-25EM6 3 6.00 3.80 - 2.50
C40-31EM1 1 1.75 3.00 - -
5/16" C40-31EM2 2 2.50 3.80 0.60 - - 9 ft./lbs.
C40-31EM6 3 1.00 6.00 3.80 - 3.00
C40-37EM1 1 1.75 3.00 - - 029-023
C40-37EM2 2 2.50 3.80 - -
3/8" 12 ft./lbs.
C40-37EM4 3 4.50 3.80 - 1.00
0.75
C40-37EM6 3 6.00 3.80 - 2.50
C40-43EM1 1 1.75 3.00 - -
7/16" 1.25 029-902 14 ft./lbs.
C40-43EM2 2 2.62 3.80 - -
C40-50EM1 1 1.75 1.75 3.00 - -
1/2" 0.88 029-917 17 ft./lbs.
C40-50EM2 2 1.25 2.62 3.80 - -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
