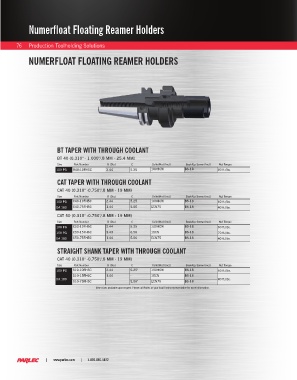

Page 78 - Parlec Catalog

Numerfloat Floating Reamer Holders

76 Production Toolholding Solutions

NUMERFLOAT FLOATING REAMER HOLDERS

BT TAPER WITH THROUGH COOLANT
BT 40 (0.310" - 1.000"/.8 MM - 25.4 MM)
Size Part Number B (Dia.) C Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
100 PG B40-10FH5C 2.44 5.25 100HCN BS-18 60 ft./lbs.
CAT TAPER WITH THROUGH COOLANT

CAT 40 (0.310" -0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
100 PG C40-10FH5C 2.44 5.25 100HCN BS-18 60 ft./lbs.
DA 180 C40-75FH5C 1.44 5.06 ECN75 BS-18 40 ft./lbs.
CAT 50 (0.310" -0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
100 PG C50-10FH5C 2.44 5.25 100HCN BS-18 60 ft./lbs.
150 PG C50-15FH6C 3.43 6.50 15CN BS-18 70 ft./lbs.
DA 180 C50-75FH5C 1.44 5.06 ECN75 BS-18 40 ft./lbs.

STRAIGHT SHANK TAPER WITH THROUGH COOLANT

CAT 40 (0.310" -0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
100 PG S10-10FH5C 2.44 5.25" 100HCN BS-18 60 ft./lbs.
S10-15FH6C 1.44 - 15CN BS-18
DA 180 40 ft./lbs.
S10-75FH5C 5.06" ECN75 BS-18
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
