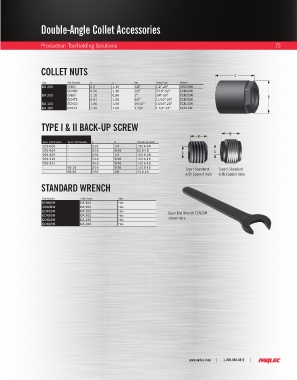

Page 77 - Parlec Catalog

Double-Angle Collet Accessories

Production Toolholding Solutions 75

COLLET NUTS C

Size Part Number B C Hex Thread Size Wrench
DA 300 CN30 0.6 1.10 1/2” 1/2”-28” 300CNW
ECN50 0.56 1.10 1/2” 7/16”-32” ECN50W
DA 200 CN20 1.10 0.88 1” 3/4”-16” ECN20W B
ECN75 0.81 1.38 3/4” 11/16”-20” ECN75W
DA 100 ECN10 1.06 1.50 15/16” 15/16”-20” ECN10W
DA 180 ECN12 1.44 1.60 1 1/4” 1 1/4”-16” ECN12W

TYPE I & II BACK-UP SCREW

B
B
Type I Part Number Type II Part Number A B Thread Left Hand
029-028 - 5/32 1/4 15/16-24
029-904 - 3/16 9/16 6/16-18 A A
029-909 - 5/32 1/4 15/16-24
029-910 - 5/16 9/16 11/16-16
029-911 - 3/16 9/16 13/16-16
- BS-18 3/16 9/16 13/16-16 Type I Standard Type II Standard
- BS-20 7/32 3/8 7/16-20
with Coolant Hole with Coolant Hole

STANDARD WRENCH

Part Number Collet Series Style
ECN50W DA 300 Hex
300CNW DA 300 Hex
ECN75W DA 200 Hex Open End Wrench ECN20W
ECN20W DA 200 Hex shown here
ECN12W DA 180 Hex
ECN10W DA 100 Hex
