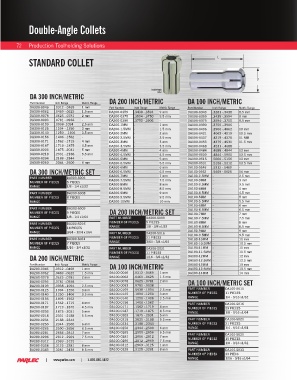

Page 74 - Parlec Catalog

Double-Angle Collets

72 Production Toolholding Solutions

STANDARD COLLET L

D

Double-Angle
Collet
DA 300 INCH/METRIC
Part Number Inch Range Metric Range DA 200 INCH/METRIC DA 100 INCH/METRIC
DA300-0046 .0312 -.0469 1 mm Part Number Inch Range Metric Range Part Number Inch Range Metric Range
DA300-0062 .0469 -.0625 1.5 mm DA200-0359 .3438 -.3594 9 mm DA100-0343 .3281 -.3438 8.5 mm
DA300-0078 .0625 -.0781 2 mm DA200-0375 .3594 -.3750 9.5 mm DA100-0359 .3438 -.3594 9 mm
DA300-0093 .0781 -.0938 - DA200-0390 .3750 -.3906 - DA100-0375 .3594- .3750 9.5 mm
DA300-0109 .0938-.1094 2.5 mm DA200-1MM - 1 mm DA100-0390 .3750 -.3906 -
DA300-0125 .1094 -.1250 3 mm DA200-1.5MM - 1.5 mm DA100-0406 .3906 -.4062 10 mm
DA300-0140 .1250 - .1406 3.5 mm DA200-2MM - 2 mm DA100-0421 .4062 -.4219 10.5 mm
DA300-0156 .1406 -.1562 - DA200-2.5MM - 2.5 mm DA100-0437 .4219 -.4375 11 MM
DA300-0171 .1562 -.1719 4 mm DA200-3MM - 3 mm DA100-0453 .4375 -.4531 11.5 mm
DA300-0187 .1719 -.1875 4.5 mm DA200-3.5MM - 3.5 mm DA100-0468 .4531 -.4688 -
DA300-0203 .1875 -.2031 5 mm DA200-4MM - 4 mm DA100-0484 .4688 -.4844 12 mm
DA300-0218 .2031 -.2188 5.5 mm DA200-4.5MM - 4.5 mm DA100-0500 .4844 -.5000 12.5 mm
DA300-0234 .2188 -.2344 - DA200-5MM - 5 mm DA100-0515 .5000 -.5156 13 mm
DA300-0250 .2344 -.2500 6 mm DA200-5.5MM - 5.5 mm DA100-0531 .5156 -.5312 13.5 mm
DA200-6MM - 6 mm DA100-0546 .5312 -.5469 -
DA 300 INCH/METRIC SET DA200-6.5MM - 6.5 mm DA100-0562 .5469 -.5625 14 mm
PART NUMBER DA300-S005 DA200-7MM - 7 mm DA100-2.5MM - 2.5 mm
NUMBER OF PIECES 5 PIECES DA200-7.5MM - - 7.5 mm DA100-3MM - - 3 mm
3.5 mm
DA100-3.5MM
8 mm
DA200-8MM
RANGE 1/8 - 1/4 x1/32
DA200-8.5MM - 8.5 mm DA100-4MM - 4 mm
PART NUMBER DA300-S008 DA200-9MM - 9 mm DA100-4.5MM - 4.5 mm
NUMBER OF PIECES 8 PIECES DA200-9.5MM - 9.5 mm DA100-5MM - 5 mm
RANGE - DA200-10MM - 10 mm DA100-5.5MM - 5.5 mm
DA100-6MM - 6 mm
PART NUMBER DA300-S009 DA100-6.5MM - 6.5 mm
NUMBER OF PIECES 9 PIECES DA 200 INCH/METRIC SET DA100-7MM - 7 mm
RANGE 1/8 - 1/4 x1/64 PART NUMBER DA200-S009 DA100-7.5MM - 7.5 mm
PART NUMBER DA300-S016 NUMBER OF PIECES 9 PIECES DA100-8MM - 8 mm
NUMBER OF PIECES 14 PIECES RANGE 1/8 - 3/8 x1/32 DA100-8.5MM - 8.5 mm
RANGE 3/64 - 1/14 x1/64 PART NUMBER DA200-S016 DA100-9MM - - 9 mm
9.5 mm
DA100-9.5MM
PART NUMBER DA300-S031 NUMBER OF PIECES 21 PIECES DA100-10MM - 10 mm
NUMBER OF PIECES 7 PIECES RANGE 3/64 - 3/8 x1/64 DA100-10.5MM - 10.5 mm
RANGE 1/16 - 1/4 x1/32 PART NUMBER DA200-S031 DA100-11MM - 11 mm
NUMBER OF PIECES 11 PIECES DA100-11.5MM - 11.5 mm
DA 200 INCH/METRIC RANGE 1/16 - 3/8 x1/32 DA100-12MM - 12 mm
DA100-12.5MM -
12.5 mm
Part Number Inch Range Metric Range DA 100 INCH/METRIC DA100-13MM - 13 mm
DA200-0046 .0312 -.0469 1 mm DA100-13.5MM - 13.5 mm
DA200-0062 .0469 -.0625 1.5 mm DA100-0046 .0312 -.0469 1 mm DA100-14MM - 14 mm
DA200-0078 .0625 -.0781 2 mm DA100-0062 .0469 -.0625 1.5 mm
DA200-0093 .0781 -.0938 - DA100-0078 .0625 -.0781 2 mm DA 100 INCH/METRIC SET
DA200-0109 .0938 -.1094 2.5 mm DA100-0093 .0781 -.0938 -
DA200-0125 .1094 -.1250 3 mm DA100-0109 .0938 -.1094 2.5 mm PART NUMBER DA100-S011
DA200-0140 .1250 -.1406 3.5 mm DA100-0125 .1094 -.1250 3 mm NUMBER OF PIECES 11 PIECES
DA200-0156 .1406 -.1562 - DA100-0140 .1250 -.1406 3.5 mm RANGE 1/4 - 9/16 x1/32
DA200-0171 .1562 -.1719 4 mm DA100-0156 .1406 -.1562 - PART NUMBER DA100-S016
DA200-0187 .1719 -.1875 4.5 mm DA100-0171 .1562 -.1719 4 mm NUMBER OF PIECES 29 PIECES
DA200-0203 .1875 -.2031 5 mm DA100-0187 .1719 -.1875 4.5 mm RANGE 1/8 - 9/16 x1/64
DA200-0218 .2031 -.2188 5.5 mm DA100-0203 .1875 -.2031 5 mm
DA200-0234 .2188 -.2344 - DA100-0218 .2031 -.2188 5.5 mm PART NUMBER DA100-S021
DA200-0250 .2344 -.2500 6 mm DA100-0234 .2188 -.2344 - NUMBER OF PIECES 21 PIECES
DA200-0265 .2500 -.2656 6.5 mm DA100-0250 .2344 -.2500 6 mm RANGE 1/4 - 9/16 x1/64
DA200-0281 .2656 -.2812 7 mm DA100-0265 .2500 -.2656 6.5 mm PART NUMBER DA100-S031
DA200-0296 .2812 -.2969 7.5 mm DA100-0281 .2656 -.2812 7 mm NUMBER OF PIECES 15 PIECES
DA200-0312 .2969 -.3125 - DA100-0296 .2812 -.2969 7.5 mm RANGE 1/8 - 9/16 x1/32
DA200-0328 .3125 -.3281 8 mm DA100-0312 .2969 -.3125 1 mm
DA200-0343 .3281 -.3438 8.5 mm DA100-0328 .3125 -.3281 8 mm PART NUMBER DA100-S033
NUMBER OF PIECES 33 PIECS
| www.parlec.com | 1-800-866-5872 RANGE 1/16 - 9/16 x1/64
