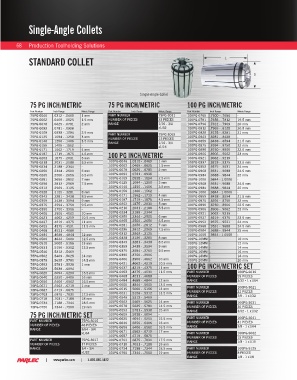

Page 70 - Parlec Catalog

Single-Angle Collets

68 Production Toolholding Solutions

STANDARD COLLET L

D

Single-Angle Collet
75 PG INCH/METRIC 75 PG INCH/METRIC 100 PG INCH/METRIC

Part Number Inch Range Metric Range Part Number Inch Range Metric Range Part Number Inch Range Metric Range
75PG-0046 .0312 - .0469 1 mm PART NUMBER 75PG-S031 100PG-0765 .7500 - .7656 -
75PG-0062 .0469 - .0625 1.5 mm NUMBER OF PIECES 23 PIECES 100PG-0781 .7656 - .7812 19.5 mm
75PG-0078 .0625 - .0781 2 mm RANGE 1/16 - 3/4 100PG-0796 .7812 - .7969 20 mm
75PG-0093 .0781 - .0938 - x1/32 100PG-0812 .7969 - .8125 20.5 mm
75PG-0109 .0938 - .1094 2.5 mm PART NUMBER 75PG-S062 100PG-0828 .8125 - .8281 21 mm
75PG-0125 .1094 - .1250 3 mm NUMBER OF PIECES 12 PIECES 100PG-0843 .8281 - .8438 -
75PG-0140 .1250 - .1406 3.5 mm RANGE 1/16 - 3/4 100PG-0859 .8438 - .8594 21.5 mm
75PG-0156 .1406 - .1562 - x1/16 100PG-0875 .8594 - .8750 22 mm
75PG-0171 .1562 - .1719 4 mm 100PG-0890 .8750 - .8906 22.5 mm
75PG-0187 .1719 - .1875 4.5 mm 100 PG INCH/METRIC 100PG-0906 .8906 - .9062 23 mm
75PG-0203 .1875 - .2031 5 mm 100PG-0921 .9062 - .9219 -
75PG-0218 .2031 - .2188 5.5 mm 100PG-0046 .0312 - .0469 1 mm 100PG-0937 .9219 - .9375 23.5 mm
75PG-0234 .2188 - .2344 - 100PG-0062 .0469 - .0625 1.5 mm 100PG-0953 .9375 - .9531 24 mm
75PG-0250 .2344 - .2500 6 mm 100PG-0078 .0625 - .0781 2 mm 100PG-0968 .9531 - .9688 24.5 mm
75PG-0265 .2500 - .2656 6.5 mm 100PG-0093 .0781 - .0938 - 100PG-0984 .9688 - .9844 25 mm
75PG-0281 .2656 - .2812 7 mm 100PG-0109 .0938 - .1094 2.5 mm 100PG-1000 .9844 - 1.0000 -
75PG-0296 .2812 - .2969 7.5 mm 100PG-0125 .1094 - .1250 3 mm 100PG-0968 .9531 - .9688 24.5 mm
75PG-0312 .2969 - .3125 - 100PG-0140 .1250 - .1406 3.5 mm 100PG-0984 .9688 - .9844 25 mm
75PG-0328 .3125 - .3281 8 mm 100PG-0156 .1406 - .1562 - 100PG-1000 .9844 - 1.0000 -
75PG-0343 .3281 - .3438 8.5 mm 100PG-0171 .1562 - .1719 4 mm 100PG-0859 .8438 - .8594 21.5 mm
75PG-0359 .3438 - .3594 9 mm 100PG-0187 .1719 - .1875 4.5 mm 100PG-0875 .8594 - .8750 22 mm
75PG-0375 .3594 - .3750 9.5 mm 100PG-0203 .1875 - .2031 5 mm 100PG-0890 .8750 - .8906 22.5 mm
75PG-0390 .3750 - .3906 - 100PG-0218 .2031 - .2188 5.5 mm 100PG-0906 .8906 - .9062 23 mm
75PG-0406 .3906 - .4062 10 mm 100PG-0234 .2188 - .2344 - 100PG-0921 .9062 - .9219 -
75PG-0421 .4062 - .4219 10.5 mm 100PG-0250 .2344 - .2500 6 mm 100PG-0937 .9219 - .9375 23.5 mm
75PG-0437 .4219 - .4375 11 mm 100PG-0265 .2500 - .2656 6.5 mm 100PG-0953 .9375 - .9531 24 mm
75PG-0453 .4375 - .4531 11.5 mm 100PG-0281 .2656 - .2812 7 mm 100PG-0968 .9531 - .9688 24.5 mm
75PG-0468 .4531 - .4688 - 100PG-0296 .2812 - .2969 7.5 mm 100PG-0984 .9688 - .9844 25 mm
75PG-0484 .4688 - .4844 12 mm 100PG-0312 .2969 - .3125 - 100PG-1000 .9844 - 1.0000 -
75PG-0500 .4844 - .5000 12.5 mm 100PG-0328 .3125 - .3281 8 mm 100PG-10MM - 10 mm
75PG-0515 .5000 - .5156 13 mm 100PG-0343 .3281 - .3438 8.5 mm 100PG-12MM - 12 mm
75PG-0531 .5156 - .5312 13.5 mm 100PG-0359 .3438 - .3594 9 mm 100PG-14MM - 14 mm
75PG-0546 .5312 - .5469 - 100PG-0375 .3594 - .3750 9.5 mm 100PG-16MM - 16 mm
75PG-0562 .5469 - .5625 14 mm 100PG-0390 .3750 - .3906 - 100PG-18MM - 18 mm
75PG-0578 .5625 - .5781 14.5 mm 100PG-0406 .3906 - .4062 10 mm 100PG-20MM - 20 mm
75PG-0593 .5781 - .5938 1 mm 100PG-0421 .4062 - .4219 10.5 mm 100 PG INCH/METRIC SET
75PG-0609 .5938 - .6094 - 100PG-0437 .4219 - .4375 11 mm
75PG-0625 .6094 - .6250 15.5 mm 100PG-0453 .4375 - .4531 11.5 mm PART NUMBER 100PG-S016
75PG-0640 .6250 - .6406 16 mm 100PG-0468 .4531 - .4688 - NUMBER OF PIECES 59 PIECES
75PG-0656 .6406 - .6562 16.5 mm 100PG-0484 .4688 - .4844 12 mm RANGE 3/32 - 1 x1/64
75PG-0671 .6562 - .6719 1 mm 100PG-0500 .4844 - .5000 12.5 mm PART NUMBER 100PG-S021
75PG-0687 .6719 - .6875 - 100PG-0515 .5000 - .5156 13 mm NUMBER OF PIECES 21 PIECES
75PG-0703 .6875 - .7031 17.5 mm 100PG-0531 .5156 - .5312 13.5 mm RANGE 3/8 - 1 x1/32
75PG-0718 .7031 - .7188 18 mm 100PG-0546 .5312 - .5469 -
75PG-0734 .7188 - .7344 18.5 mm 100PG-0562 .5469 - .5625 14 mm PART NUMBER 100PG-S031
75PG-0750 .7344 - .7500 19 mm 100PG-0578 .5625 - .5781 14.5 mm NUMBER OF PIECES 30 PIECES
100PG-0593 .5781 - .5938 15 mm RANGE 3/32 - 1 x1/32
75 PG INCH/METRIC SET 100PG-0609 .5938 - .6094 -
PART NUMBER 75PG-S016 100PG-0625 .6094 - .6250 15.5 mm PART NUMBER 100PG-S041
NUMBER OF PIECES
41 PIECES
100PG-0640
.6250 - .6406
16 mm
NUMBER OF PIECES 48 PIECES 100PG-0656 .6406 - .6562 16.5 mm RANGE 3/8 - 1 x1/64
RANGE 3/64 - 3/4
x1/64 100PG-0671 .6562 - .6719 17 mm PART NUMBER 100PG-S062
100PG-0687 .6719 - .6875 - NUMBER OF PIECES 15 PIECES
PART NUMBER 75PG-S017 100PG-0703 .6875 - .7031 17.5 mm RANGE 1/8 - 1 x1/16
NUMBER OF PIECES 17 PIECES 100PG-0718 .7031 - .7188 18 mm
RANGE 1/4 - 3/4 100PG-0734 .7188 - .7344 18.5 mm PART NUMBER 100PG-S125
x1/32 100PG-0750 .7344 - .7500 19 mm NUMBER OF PIECES 8 PIECES
RANGE 1/8 - 1 x1/8
