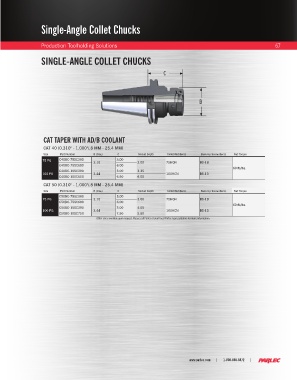

Page 69 - Parlec Catalog

Single-Angle Collet Chucks

Production Toolholding Solutions 67

SINGLE-ANGLE COLLET CHUCKS

C

B

CAT TAPER WITH AD/B COOLANT

CAT 40 (0.310" - 1.000"/.8 MM - 25.4 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
75 PG C40BC-75SC300 2.10 3.00 3.00 75HCN BS-18
C40BC-75SC600 6.00
60 ft./lbs.
C40BC-10SC300 3.00 3.35
100 PG 2.44 100HCN BS-10
C40BC-10SC650 6.50 6.00
CAT 50 (0.310" - 1.000"/.8 MM - 25.4 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
C50BC-75SC300 3.00
75 PG 2.10 3.00 75HCN BS-18
C50BC-75SC600 6.00
60 ft./lbs.
C50BC-10SC300 3.00 4.00
100 PG 2.44 100HCN BS-10
C50BC-10SC750 7.50 5.50
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
