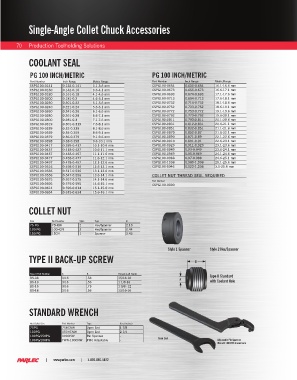

Single-Angle Collet Chuck Accessories

70 Production Toolholding Solutions

COOLANT SEAL

PG 100 INCH/METRIC PG 100 INCH/METRIC

Part Number Inch Range Metric Range Part Number Inch Range Metric Range
CSPG100-0141 0.122-0.141 3.1-3.6 mm CSPG100-0654 0.635-0.654 16.1-16.6 mm
CSPG100-0160 0.142-0.16 3.6-4.1 mm CSPG100-0673 0.655-0.673 16.6-17.1 mm
CSPG100-0180 0.161-0.18 4.1-4.6 mm CSPG100-0693 0.674-0.693 17.1-17.6 mm
CSPG100-0200 0.181-0.2 4.6-5.1 mm CSPG100-0713 0.694-0.713 17.6-18.1 mm
CSPG100-0220 0.201-0.22 5.1-5.6 mm CSPG100-0732 0.714-0.732 18.1-18.6 mm
CSPG100-0240 0.221-0.24 5.6-6.1 mm CSPG100-0752 0.733-0.752 18.6-19.1 mm
CSPG100-0260 0.241-0.26 6.1-6.6 mm CSPG100-0772 0.753-0.772 19.1-19.6 mm
CSPG100-0280 0.261-0.28 6.6-7.1 mm CSPG100-0792 0.773-0.792 19.6-20.1 mm
CSPG100-0300 0.281-0.3 7.1-7.6 mm CSPG100-0811 0.793-0.811 20.1-20.6 mm
CSPG100-0319 0.301-0.319 7.6-8.1 mm CSPG100-0831 0.812-0.831 20.6-21.1 mm
CSPG100-0339 0.32-0.339 8.1-8.6 mm CSPG100-0851 0.832-0.851 21.1-21.6 mm
CSPG100-0359 0.34-0.359 8.6-9.1 mm CSPG100-0870 0.852-0.87 21.6-22.1 mm
CSPG100-0379 0.36-0.379 9.1-9.6 mm CSPG100-0890 0.871-0.89 22.1-22.6 mm
CSPG100-0398 0.38-0.398 9.6-10.1 mm CSPG100-0910 0.891-0.91 22.6-23.1 mm
CSPG100-0417 0.399-0.417 10.1-10.6 mm CSPG100-0929 0.911-0.929 23.1-23.6 mm
CSPG100-0437 0.418-0.437 10.6-11.1 mm CSPG100-0949 0.93-0.949 23.6-24.1 mm
CSPG100-0457 0.438-0.457 11.1-11.6 mm CSPG100-0969 0.95-0.969 24.1-24.6 mm
CSPG100-0477 0.458-0.477 11.6-12.1 mm CSPG100-0988 0.97-0.988 24.6-25.1 mm
CSPG100-0497 0.478-0.497 12.1-12.6 mm CSPG100-1008 0.989-1.008 25.1-25.6 mm
CSPG100-0516 0.498-0.516 12.6-13.1 mm CSPG100-S046 0.122-1.008 3.1-25.6 mm
CSPG100-0536 0.517-0.536 13.1-13.6 mm
CSPG100-0556 0.547-0.556 13.6-14.1 mm COLLET NUT THREAD SEAL REQUIRED
CSPG100-0575 0.557-0.575 14.1-14.6 mm Part Number
CSPG100-0595 0.576-0.595 14.6-15.1 mm CSPG100-0000
CSPG100-0614 0.596-0.614 15.1-15.6 mm
CSPG100-0634 0.615-0.634 15.6-16.1 mm

COLLET NUT

Size Part Number Style Type B
75 PG 75HCN 2 Hex/Spanner 2.10
100 PG 100HCN 2 Hex/Spanner 2.44
150 PG 15CN 1 Spanner 3.43

Style 1 Spanner Style 2 Hex/Spanner
TYPE II BACK-UP SCREW B

Type II Part Number A B Thread (Left Hand) Type II Standard
BS-08 3/16 .56 15/16-16 A
BS-10 3/16 .56 1 1/8-16 with Coolant Hole
BS-15 3/16 .75 1 5/8- 12
BS-18 3/16 .56 13/16-16

STANDARD WRENCH

Nut Collet Size Part Number Type Size (Inches)
75PG 75HCNW Open End 1 7/8
100PG 100HCNW Open End 2 1/4
100PG/150PG 100CNW Pin Spanner -
100PG/150PG TWN-100CNW PMC Adjustable - Open End Adjustable Pin Spanner
Wrench 100CNW shown here
