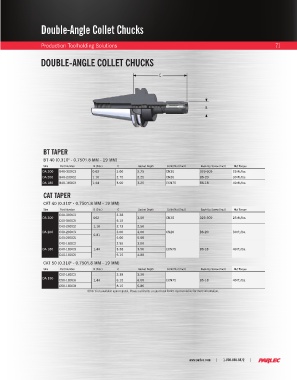

Page 73 - Parlec Catalog

Double-Angle Collet Chucks

Production Toolholding Solutions 71

DOUBLE-ANGLE COLLET CHUCKS

C

B

BT TAPER

BT 40 (0.310" - 0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
DA 300 B40-30DC3 0.62 3.00 2.75 CN30 029-909 25 ft./lbs.
DA 200 B40-20DC2 1.10 2.75 2.25 CN20 BS-20 30 ft./lbs.
DA 180 B40-18DC3 1.44 3.00 3.25 ECN75 BS-18 40 ft./lbs.

CAT TAPER

CAT 40 (0.310" - 0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
C40-30DC3 3.38
DA 300 062 3.00 CN30 029-909 25 ft./lbs.
C40-30DC5 5.15
C40-20DC2 1.10 2.73 2.50
DA 200 C40-20DC3 3.00 3.00 CN20 BS-20 30 ft./lbs.
0.81
C40-20DC5 5.00 5.00
C40-18DC2 2.95 3.00
DA 180 C40-18DC3 1.44 3.38 3.56 ECN75 BS-18 40 ft./lbs.
C40-18DC5 5.15 4.88
CAT 50 (0.310" - 0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
C50-18DC3 3.38 3.30
DA 180
C50-18DC6 1.44 6.15 6.00 ECN75 BS-18 40 ft./lbs.
C50-18DC8 8.15 5.86
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
