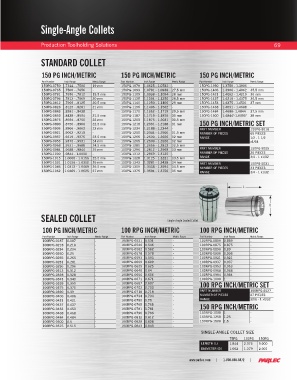

Page 71 - Parlec Catalog

Single-Angle Collets

Production Toolholding Solutions 69

STANDARD COLLET

150 PG INCH/METRIC 150 PG INCH/METRIC 150 PG INCH/METRIC

Part Number Inch Range Metric Range Part Number Inch Range Metric Range Part Number Inch Range Metric Range
150PG-0750 .7344 - .7500 19 mm 150PG-1078 1.0625 - 1.0781 - 150PG-1390 1.3750 - 1.3906 -
150PG-0765 .7500 - .7656 - 150PG-1093 1.0781 - 1.0938 27.5 mm 150PG-1406 1.3906 - 1.4062 35.5 mm
150PG-0781 .7656 - .7812 19.5 mm 150PG-1109 1.0938 - 1.1094 28 mm 150PG-1421 1.4062 - 1.4219 36 mm
150PG-0796 .7812 - .7969 20 mm 150PG-1125 1.1094 - 1.1250 28.5 mm 150PG-1437 1.4219 - 1.4375 36.5 mm
150PG-0812 .7969 - .8125 20.5 mm 150PG-1140 1.1250 - 1.1406 29 mm 150PG-1453 1.4375 - 1.4531 37 mm
150PG-0828 .8125 - .8281 21 mm 150PG-1156 1.1406 - 1.1562 - 150PG-1468 1.4531 - 1.4688 -
150PG-0843 .8281 - .8438 - 150PG-1171 1.1562 - 1.1719 29.5 mm 150PG-1484 1.4688- 1.4844 37.5 mm
150PG-0859 .8438 - .8594 21.5 mm 150PG-1187 1.1719 - 1.1875 30 mm 150PG-1500 1.4844"-1.5000" 38 mm
150PG-0875 .8594 - .8750 22 mm 150PG-1203 1.1875 - 1.2031 30.5 mm
150PG-0890 .8750 - .8906 22.5 mm 150PG-1218 1.2031 - 1.2188 31 mm 150 PG INCH/METRIC SET
150PG-0906 .8906 - .9062 23 mm 150PG-1234 1.2188 - 1.2344 - PART NUMBER 150PG-S016
150PG-0921 .9062 - .9219 - 150PG-1250 1.2344 - 1.2500 31.5 mm NUMBER OF PIECES 65 PIECES
150PG-0937 .9219 - .9375 23.5 mm 150PG-1265 1.2500 - 1.2656 32 mm RANGE 1/2 - 1 1/2
150PG-0953 .9375 - .9531 24 mm 150PG-1265 1.2500 - 1.2656 32 mm x1/64
150PG-0968 .9531 - .9688 24.5 mm 150PG-1281 1.2656 - 1.2812 32.5 mm
150PG-0984 .9688 - .9844 25 mm 150PG-1296 1.2812 - 1.2969 33 mm PART NUMBER 150PG-S025
150PG-1000 .9844 - 1.0000 - 150PG-1312 1.2969 - 1.3125 - NUMBER OF PIECES 25 PIECES
150PG-1015 1.0000 - 1.0156 25.5 mm 150PG-1328 1.3125 - 1.3281 33.5 mm RANGE 3/4 - 1 x1/32
150PG-1031 1.0156 - 1.0312 26 mm 150PG-1343 1.3281 - 1.3438 34 mm PART NUMBER 150PG-S031
150PG-1046 1.0312 - 1.0469 26.5 mm 150PG-1359 1.3438 - 1.3594 34.5 mm NUMBER OF PIECES 33 PIECES
150PG-1062 1.0469 - 1.0625 27 mm 150PG-1375 1.3594 - 1.3750 35 mm RANGE 3/4 - 1 x1/32

L

D

SEALED COLLET Single-Angle Sealed Collet

100 PG INCH/METRIC 100 RPG INCH/METRIC 100 RPG INCH/METRIC
Part Number Inch Range Metric Range Part Number Inch Range Metric Range Part Number Inch Range Metric Range
100RPG-0187 0.187 - 100RPG-0531 0.531 - 100RPG-0859 0.859 -
100RPG-0218 0.218 - 100RPG-0546 0.546 - 100RPG-0875 0.875 -
100RPG-0234 0.234 - 100RPG-0562 0.562 - 100RPG-0890 0.89 -
100RPG-0250 0.25 - 100RPG-0578 0.578 - 100RPG-0906 0.906 -
100RPG-0265 0.265 - 100RPG-0593 0.593 - 100RPG-0921 0.921 -
100RPG-0281 0.281 - 100RPG-0609 0.609 - 100RPG-0937 0.937 -
100RPG-0296 0.296 - 100RPG-0625 0.625 - 100RPG-0953 0.953 -
100RPG-0312 0.312 - 100RPG-0640 0.64 - 100RPG-0968 0.968 -
100RPG-0328 0.328 - 100RPG-0656 0.656 - 100RPG-0984 0.984 -
100RPG-0343 0.343 - 100RPG-0671 0.671 - 100RPG-1000 1 -
100RPG-0359 0.359 - 100RPG-0687 0.687 - 100 RPG INCH/METRIC SET
100RPG-0375 0.375 - 100RPG-0703 0.703 -
100RPG-0390 0.39 - 100RPG-0718 0.718 - PART NUMBER 100RPG-S027
100RPG-0406 0.406 - 100RPG-0734 0.734 - NUMBER OF PIECES 27 PIECES
100RPG-0421 0.421 - 100RPG-0750 0.75 - RANGE 3/16 - 1 x1/32
100RPG-0437 0.437 - 100RPG-0765 0.765 - 150 RPG INCH/METRIC
100RPG-0453 0.453 - 100RPG-0781 0.781 -
100RPG-0468 0.468 - 100RPG-0796 0.796 - 150RPG-1000 1 -
100RPG-0484 0.484 - 100RPG-0812 0.812 - 150RPG-1250 1.25 -
100RPG-0500 0.5 - 100RPG-0828 0.828 - 150RPG-1500 1.5 -
100RPG-0515 0.515 - 100RPG-0843 0.843 -
SINGLE-ANGLE COLLET SIZE
75PG 100PG 150PG
LENGTH (L) 1.844 2.375 3.000
DIAMETER (D) 1.062 1.379 2.001
