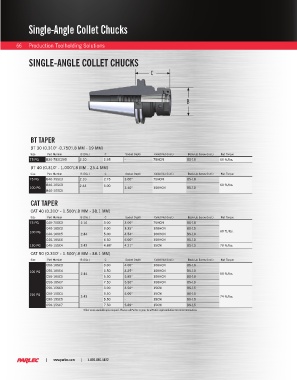

Page 68 - Parlec Catalog

Single-Angle Collet Chucks

66 Production Toolholding Solutions

SINGLE-ANGLE COLLET CHUCKS

C

B

BT TAPER

BT 30 (0.310" -0.750"/.8 MM - 19 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
75 PG B30-75SC295 2.10 2.95 - 75HCN BS-18 60 ft./lbs.
BT 40 (0.310" - 1.000"/.8 MM - 25.4 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
75 PG B40-75SC3 2.10 2.75 3.00" 75HCN BS-18
B40-10SC3 2.44 3.00 60 ft./lbs.
100 PG 3.40" 100HCN BS-10
B40-10SC5
CAT TAPER

CAT 40 (0.310" - 1.500"/.8 MM - 38.1 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
75 PG C40-75SC3 2.10 3.00 3.00" 75HCN BS-18
C40-10SC3 3.00 3.35" 100HCN BS-10
100 PG 60 ft./lbs.
C40-10SC5 2.44 5.00 4.54" 100HCN BS-10
C40-10SC6 6.50 6.00" 100HCN BS-10
150 PG C40-15SC4 3.43 4.88" 4.21" 15CN BS-15 70 ft./lbs.
CAT 50 (0.310" - 1.500"/.8 MM - 38.1 MM)
Size Part Number B (Dia.) C Socket Depth Collet Nut (Incl.) Back-Up Screw (Incl.) Nut Torque
C50-10SC3 3.00 4.00" 100HCN BS-10
100 PG C50-10SC4 2.44 3.50 4.25" 100HCN BS-10 60 ft./lbs.
C50-10SC5 5.50 5.89" 100HCN BS-10
C50-10SC7 7.50 5.50" 100HCN BS-10
C50-15SC3 3.00 3.50" 15CN BS-15
150 PG C50-15SC4 3.43 3.50 4.00" 15CN BS-15 74 ft./lbs.
C50-15SC5 5.50 - 15CN BS-15
C50-15SC7 7.50 5.89" 15CN BS-15
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
