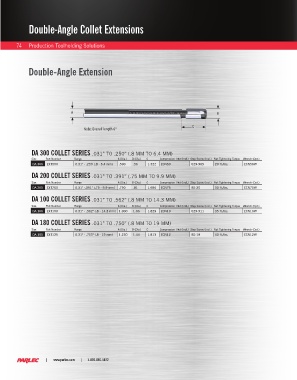

Page 76 - Parlec Catalog

Double-Angle Collet Extensions

74 Production Toolholding Solutions

Double-Angle Extension

A B

C
Note: Overall length 6"

DA 300 COLLET SERIES .031” TO .250” (.8 MM TO 6.4 MM)
Size Part Number Range A (Dia.) B (Dia.) C Compression Nut (Incl.) Stop Screw (Incl.) Nut Tightening Torque Wrench (Opt.)
DA 300 EXT500 0.31" - .250 (.8 - 6.4 mm) .500 .56 1.322 ECN50 029-909 20 ft./lbs. ECN50W

DA 200 COLLET SERIES .031” TO .391” (.75 MM TO 9.9 MM)
Size Part Number Range A (Dia.) B (Dia.) C Compression Nut (Incl.) Stop Screw (Incl.) Nut Tightening Torque Wrench (Opt.)
DA 200 EXT750 0.31" -.391" (.75 - 9.9 mm) .750 .81 1.686 ECN75 BS-20 30 ft./lbs. ECN75W

DA 100 COLLET SERIES .031” TO .562” (.8 MM TO 14.3 MM)
Size Part Number Range A (Dia.) B (Dia.) C Compression Nut (Incl.) Stop Screw (Incl.) Nut Tightening Torque Wrench (Opt.)
DA 100 EXT100 0.31" - .562" (.8 - 14.3 mm) 1.000 1.06 1.829 ECN10 029-911 35 ft./lbs. ECN10W

DA 180 COLLET SERIES .031” TO .750” (.8 MM TO 19 MM)
Size Part Number Range A (Dia.) B (Dia.) C Compression Nut (Incl.) Stop Screw (Incl.) Nut Tightening Torque Wrench (Opt.)
DA 180 EXT125 0.31" - .750" (.8 - 19 mm) 1.250 1.44 1.813 ECN12 BS-18 40 ft./lbs. ECN12W

| www.parlec.com | 1-800-866-5872
